​What Weight Can A Tail Lift Take?

Views: 220     Author: cadrotaillift     Publish Time: 2025-05-16      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Factors Influencing Tail Lift Capacity

>> Load Weight

>> Platform Length

>> Hydraulic System Strength

>> Mounting Brackets

>> Load Center Position

Tail Lift Categories

>> Column Lifts

>> Tuck-Under Lifts

>> VanLifts

Load Center Calculations

Tail Lift Weight vs. Truck Performance

>> Payload and Fuel Efficiency

>> Driving Dynamics

Choosing the Right Tail Lift

Frequently Asked Questions

Citations:

Tail lifts are essential components in logistics and transportation, enabling efficient loading and unloading of heavy goods. Their weight capacity depends on multiple factors, including design, materials, and operational conditions. This article explores these variables in detail, providing actionable insights for selecting and using tail lifts effectively.

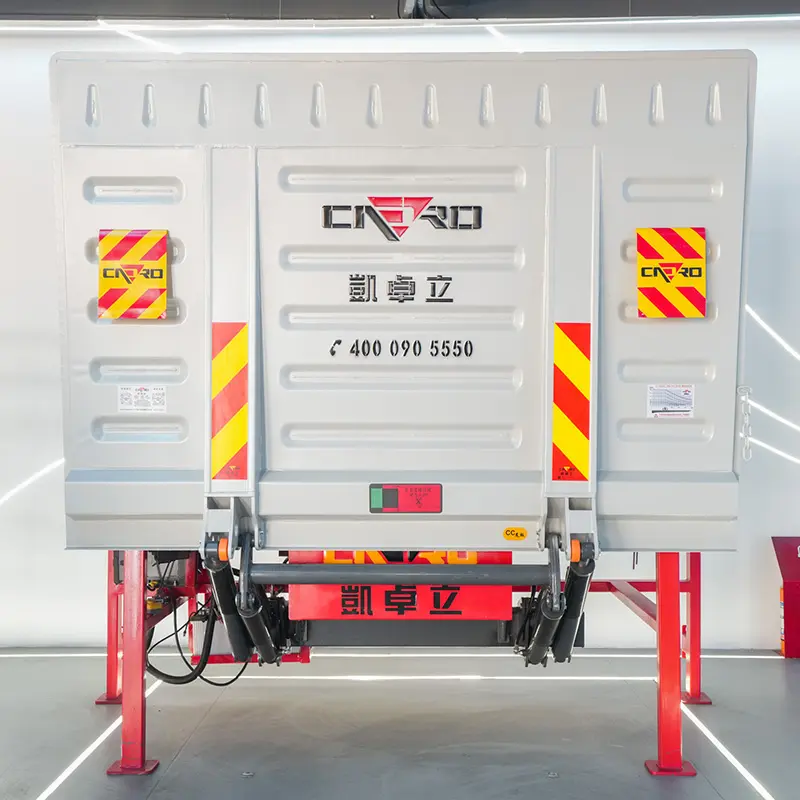

Tail Lift13

Factors Influencing Tail Lift Capacity

Load Weight

The primary determinant of a tail lift's capacity is the maximum weight it is engineered to handle. Exceeding this limit risks mechanical failure or safety hazards. For example, a tail lift rated for 1,500 kg cannot safely lift 2,000 kg, even temporarily. Always verify the load weight against the manufacturer's specifications.

Platform Length

Longer platforms distribute weight more evenly but require stronger hydraulic systems and structural support. A 2.6-meter platform, for instance, may support 2,000 kg at a 1-meter load center but only 1,250 kg if the load shifts to 1.6 meters.

Hydraulic System Strength

Hydraulic cylinders generate the force needed to lift loads. Larger cylinders handle heavier weights but consume more fluid, potentially slowing operation. High-capacity models, such as those with four-cylinder mechanisms, prioritize power over speed.

Mounting Brackets

Durable brackets are critical for transferring stress from the lift to the vehicle. Weak or corroded brackets can detach under heavy loads, leading to accidents. Regular inspections ensure their integrity.

Load Center Position

The load center-the midpoint of the cargo's position on the platform-directly impacts capacity. A tail lift rated for 2,000 kg at a 1-meter load center may drop to 1,250 kg if the load shifts toward the platform's edge. Operators must account for tools like electric pallet jacks, which add weight and alter the load center.

Tail Lift Categories

Column Lifts

Common in urban logistics, column lifts use vertical hydraulic cylinders to handle 500–3,000 kg loads. They balance affordability and versatility, making them ideal for delivery vans and medium-duty trucks.

Tuck-Under Lifts

Designed for heavy-duty vehicles, tuck-under lifts fold beneath the truck when not in use. Models like the DEL DA1500G support 1,500 kg and feature galvanized steel frames for durability. Their compact design minimizes interference with loading docks.

VanLifts

Optimized for light commercial vehicles, VanLifts manage 500–1,000 kg loads. Aluminum platforms keep their weight under 200 kg, preserving payload capacity for small-scale deliveries.

Load Center Calculations

The cantilever principle governs tail lift capacity: the farther a load is from the pivot point, the less weight the lift can safely handle. For example:

- A 2,000 kg lift with a 1-meter load center drops to 1,250 kg at 1.6 meters.

- Adding a 500 kg electric pallet jack to a 1,500 kg load exceeds the reduced capacity, risking equipment failure.

Operators must consult load center charts provided by manufacturers to avoid overloading.

Tail Lift Weight vs. Truck Performance

Payload and Fuel Efficiency

A tail lift's weight reduces the vehicle's available payload. For instance, a 400 kg lift on a truck with a 3,500 kg payload leaves only 3,100 kg for cargo. Heavier lifts also increase fuel consumption due to added mass.

Driving Dynamics

Excess weight lengthens braking distances and raises rollover risks in corners. Heavy-duty lifts (500–800 kg) demand cautious driving, especially in urban environments.

Choosing the Right Tail Lift

1. Assess Load Requirements

Determine maximum weight, frequency of use, and typical load dimensions. For irregularly shaped items, opt for wider platforms.

2. Vehicle Compatibility

Ensure the lift's weight and size align with the truck's payload and chassis design. Tuck-under lifts suit large vehicles, while VanLifts fit vans.

3. Material Selection

Aluminum platforms reduce weight but may lack the durability of steel for extreme conditions. Hybrid designs offer a balance.

4. Safety Features

Prioritize lifts with pressure relief valves, non-slip surfaces, and guard rails to prevent accidents.

Frequently Asked Questions

1. What is the maximum weight a tail lift can handle?

Most tail lifts support 500–3,000 kg, with heavy-duty models reaching 9,000 kg. Always check manufacturer ratings.

2. How does load center position affect capacity?

Capacity decreases as the load moves toward the platform's edge. A 1.6-meter load center may reduce capacity by 30–40%.

3. Can I use an electric pallet jack on a tail lift?

Yes, but include the jack's weight (typically 500 kg) in total load calculations.

4. Are aluminum tail lifts less durable than steel?

Aluminum resists corrosion and reduces weight but may wear faster under heavy, frequent use.

5. How often should tail lifts be inspected?

Perform monthly checks for hydraulic leaks, bracket corrosion, and platform integrity. Annual professional inspections are recommended.

Tail Lift1

Citations:

[1] https://www.palfinger.com/en/products/tail-lifts/models/mbb-c-1500-l_p_3699

[2] https://www.beauway.com/how-much-weight-can-a-tail-lift-lift/

[3] https://transporteng.com.au/tail-lift-loading-front-and-centre/

[4] https://www.hiab.com/en/product-finder/tail-lifts/del/del-da1500g

[5] https://ladebordwand-ersatzteile.de/en/tail-lift-blog/what-does-a-tail-lift-weigh/

[6] https://www.cumbrialogistics.co.uk/media/attachments/2018/11/02/vehicle-and-tail-lift-guide-v1.4.pdf

[7] https://www.taillift.org/fileadmin/user_upload/Uploads/EN_annex_weight.pdf

[8] https://en.wikipedia.org/wiki/Tail_lift

[9] https://www.palfinger.com/en/products/tail-lifts/highlights

[10] https://www.palfinger.com/en/products/tail-lifts
