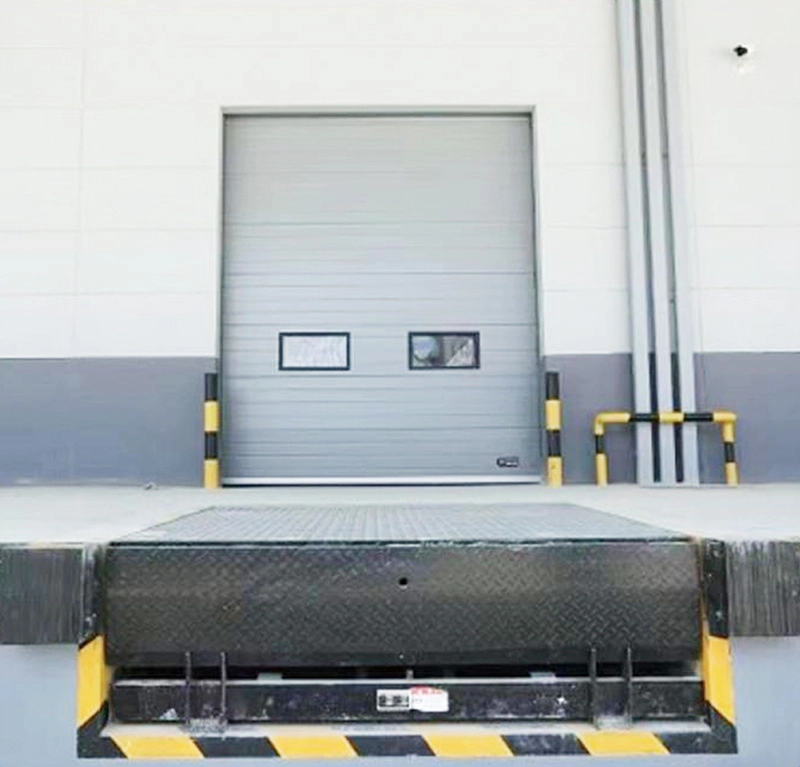

Hydraulic dock levelers are critical tools for bridging height gaps between loading docks and freight vehicles, ensuring safe and efficient material transfer. These systems rely on pressurized hydraulic fluid to automate platform adjustments, reducing manual labor while enhancing precision. Below, we explore their mechanics, components, and operational best practices.
---
A hydraulic dock leveler consists of several interconnected parts that enable seamless operation:
The system's heart includes a motor-driven pump, reservoir, and valves. The pump pressurizes hydraulic fluid (e.g., Shell Tellus T15 or Mobil Aero HFA), which flows through steel tubing to actuate cylinders.
- Main Lift Cylinder: Raises/lowers the deck.
- Lip Cylinder: Extends/retracts the lip plate to bridge the gap.
Dual-port cylinders allow bidirectional fluid flow, enabling faster response times.
Operators use push-button controls (RAISE, LIP EXTEND, STOP) to activate sequences. Advanced models include auto-return proximity switches for automated storage.
- Velocity Fuses: Prevent free-fall during truck pull-away incidents by blocking fluid flow if pressure drops abruptly.
- Ramp Stops: Lock the deck in place during maintenance.
---
Pressing the RAISE button starts the hydraulic pump. Fluid enters the main lift cylinder, lifting the deck. Simultaneously, the lip cylinder retracts to avoid obstruction.
At full height, a sequence valve redirects fluid to the lip cylinder, extending the lip onto the truck bed. The deck then “floats” down via a flow control valve, adapting to the vehicle's height.
Forklifts or personnel cross the stabilized platform. The system maintains alignment even under heavy loads (e.g., 30,000+ lbs).
Post-operation, pressing RAISE again retracts the lip. Releasing the button allows the deck to descend into its stored position, flush with the dock floor.
---
- Truck Restraints: Always engage vehicle restraints to prevent premature departure.
- Visual Inspections: Confirm lip engagement on the truck bed before use.
- Emergency Stop: Use the STOP button to freeze all motion immediately.
- Fluid Checks: Monitor hydraulic fluid levels and viscosity quarterly.
- Cylinder Inspections: Look for leaks or corrosion annually.
- Debris Removal: Clean the pit weekly to prevent mechanical interference.
---
| Feature | Hydraulic | Mechanical | Air-Powered |
|---|---|---|---|
| Operation | Fully automated | Manual (spring-powered) | Semi-automatic (airbag) |
| Speed | Fast, precise | Slow, labor-intensive | Moderate |
| Maintenance | Low (sealed system) | High (spring wear) | Moderate (air leaks) |
| Cost | Higher upfront | Low | Medium |
Hydraulic models excel in high-traffic environments due to their durability and minimal downtime.
---
- Cause: Low fluid levels or clogged filters.
- Solution: Refill fluid and replace filters.
- Cause: Faulty sequence valve or solenoid.
- Solution: Test valve function and replace if stuck.
- Cause: Worn cylinder seals or cracked tubing.
- Solution: Tighten connections or replace damaged parts.
---
Q1: How do I operate a hydraulic dock leveler safely?
Always verify truck restraint engagement, avoid overloading, and conduct pre-use visual inspections.
Q2: What prevents the deck from collapsing during a truck pull-away?
Velocity fuses lock hydraulic fluid in the cylinders, limiting uncontrolled drops to ≤4 inches.
Q3: How often should hydraulic fluid be replaced?
Replace fluid every 2–3 years or if contamination (e.g., water, debris) is detected.
Q4: Can hydraulic levelers handle extreme temperatures?
Yes, using low-temperature fluids (e.g., U.S. Oil ZFI-5606) ensures performance in sub-freezing conditions.
Q5: Why choose hydraulic over mechanical levelers?
Hydraulic systems reduce operator fatigue, offer faster cycles, and require less maintenance.
---
