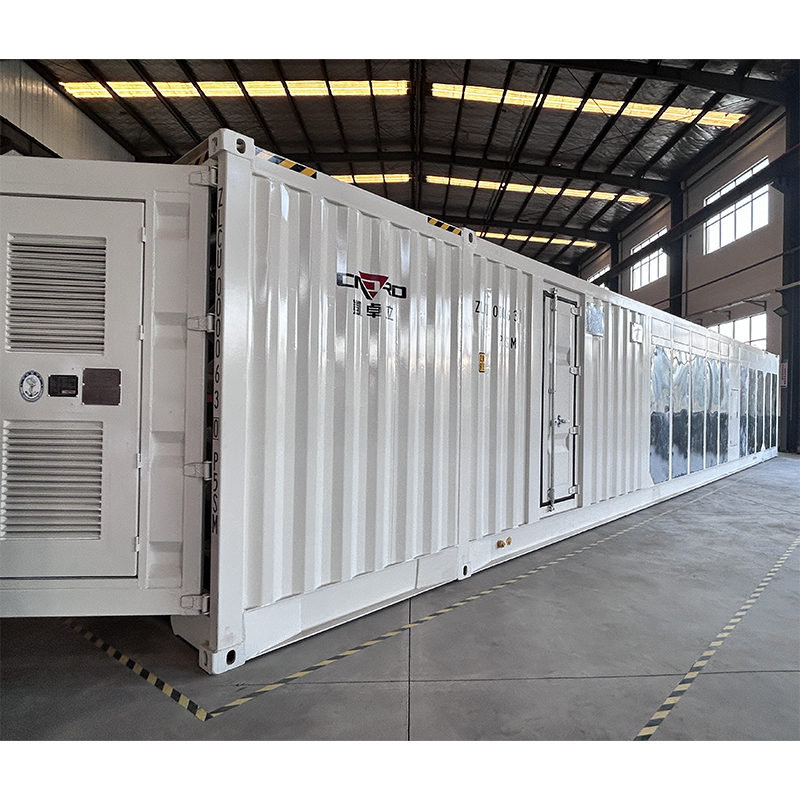

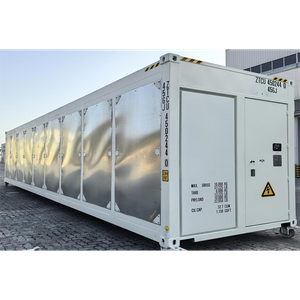

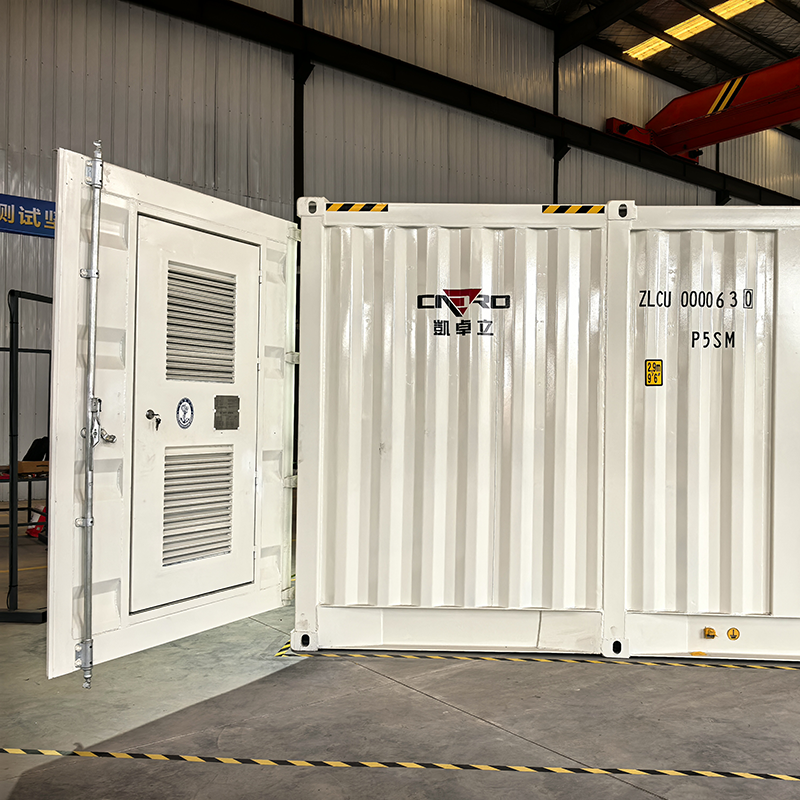

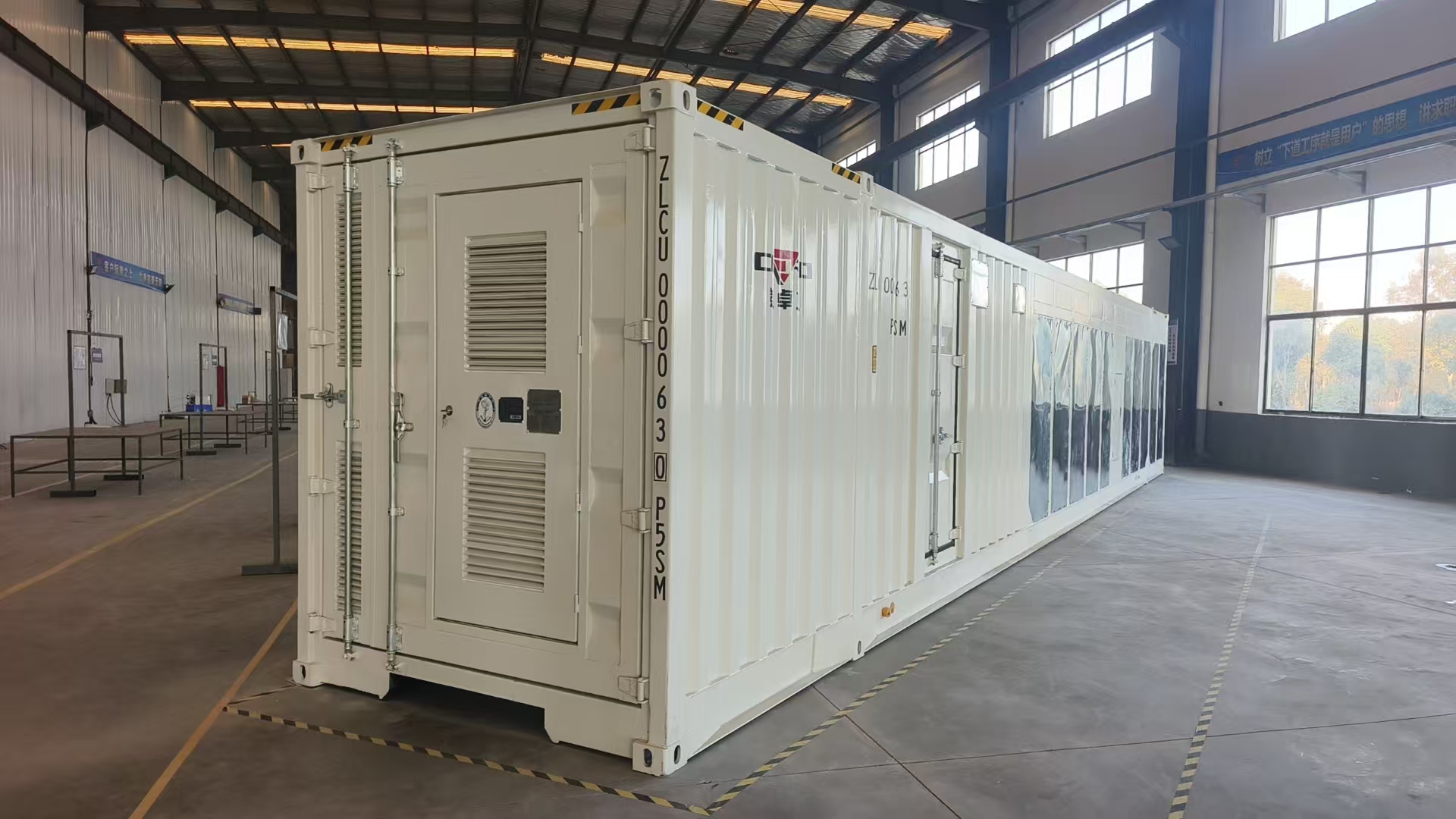

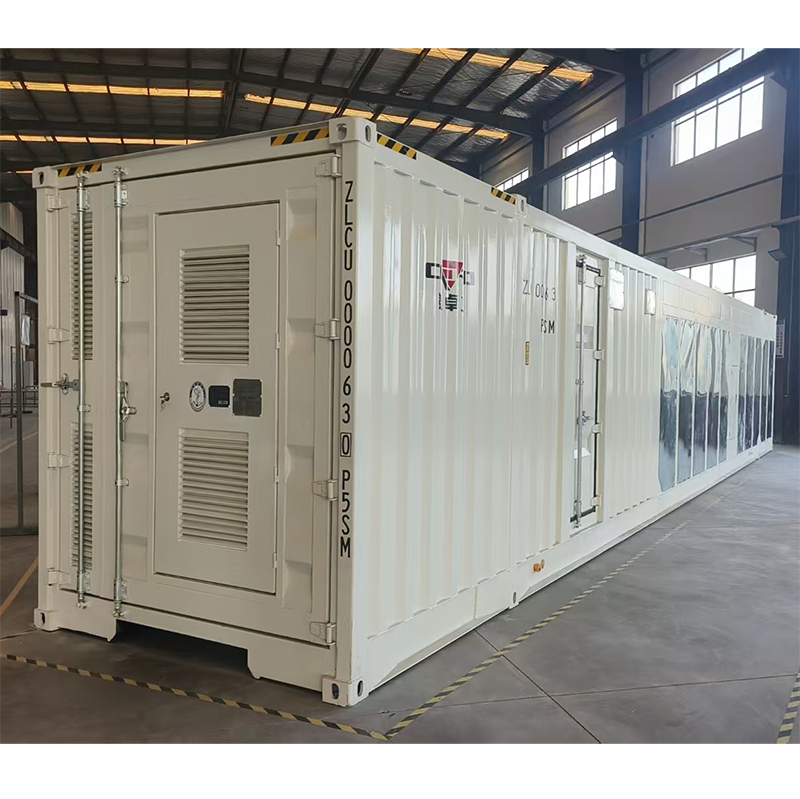

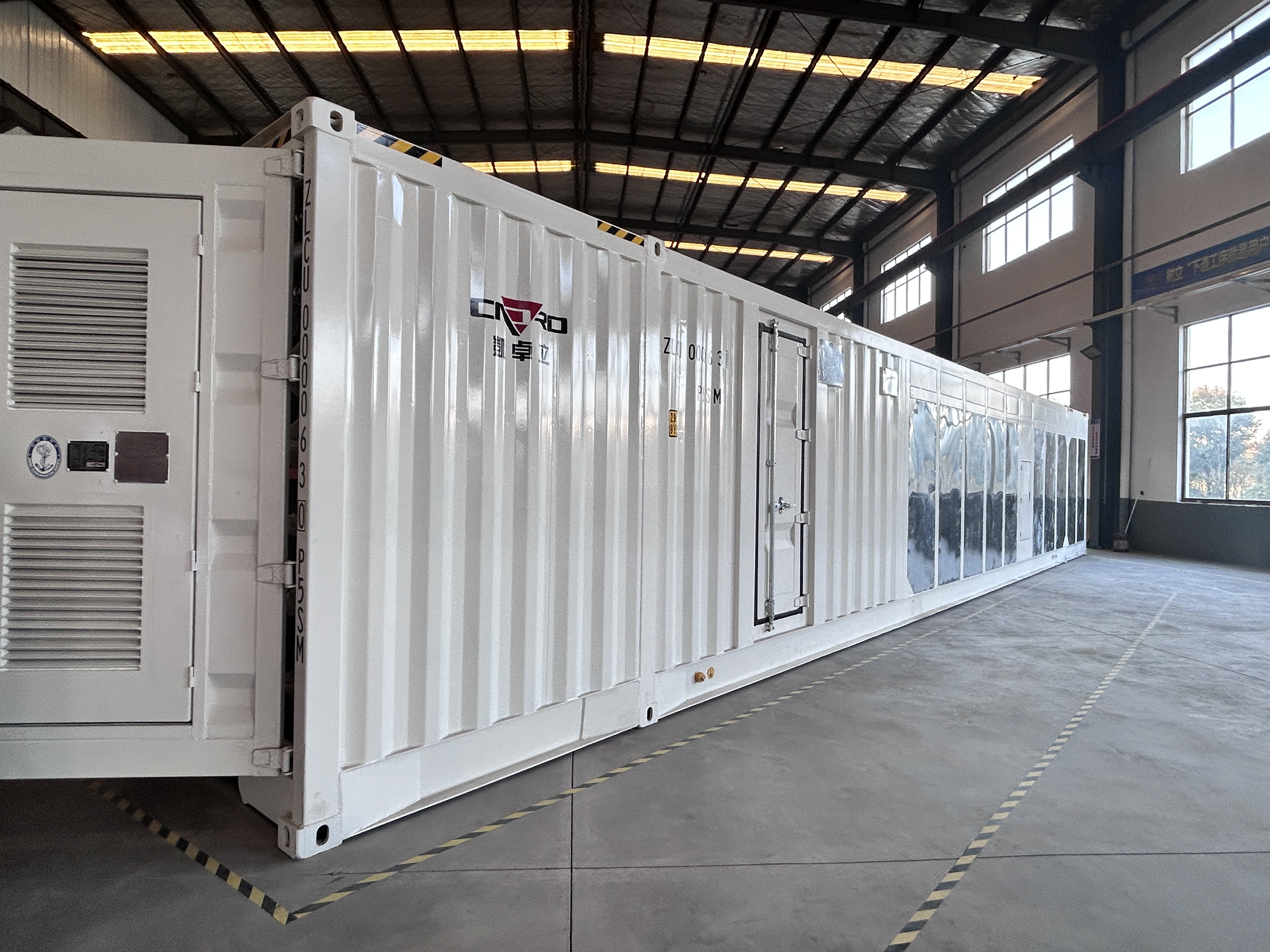

Container Liquid Cooling Solutions

Key Features

Integrated Design, Unmatched Efficiency

One-Stop Deployment: 95% of components pre-assembled in factories—no heavy machinery required onsite. Simply connect power, coolant, and deploy miners.

Space & Cost Optimized: Compact structure reduces footprint by 25% versus split systems, while minimizing logistics and energy expenses.

Intelligent Thermal Control

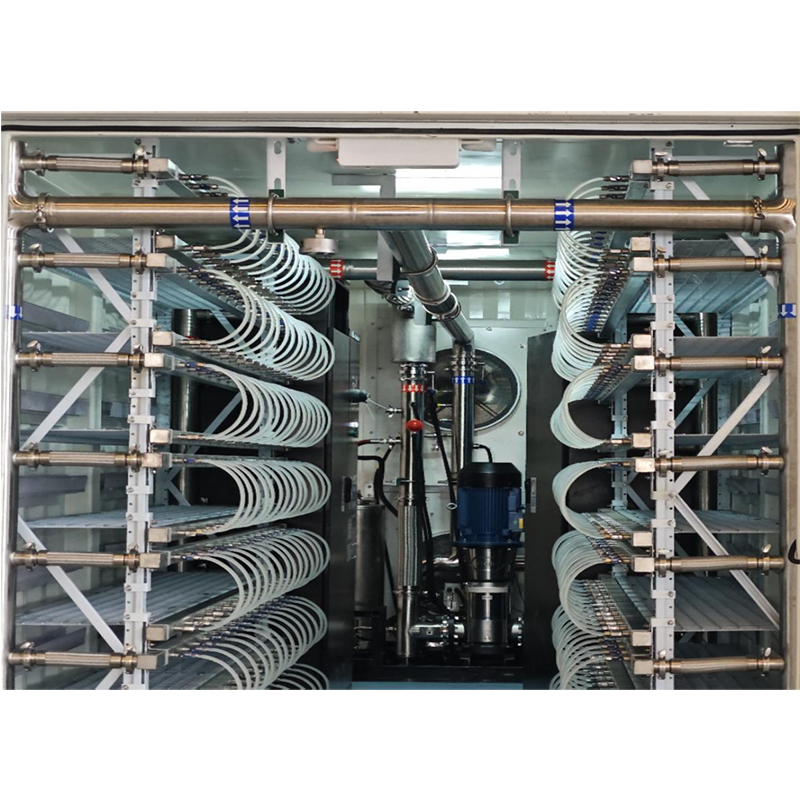

Advanced Heat Dissipation: 4 high-capacity dry coolers (4500×240×2400mm) with 26000m³/h airflow, optimized fin spacing (2.1mm), and 70-loop copper pipes for maximum heat exchange.

Smart Climate Resilience: Foldable sunshades, insulated roof/doors, and water curtains block solar radiation while preventing heat reflux.

Future-Proof & Highly Compatible

Scalable Capacity: Supports 196–336 units of leading miners (Antminer S19/S21/T21, Whatsminer, Avalon A841/1246/15/11/9).

Flexible PDU Options: Modular single/three-phase PDU designs with horizontal network ports to save rack space.

Safety Redefined

Triple Electrical Protection: UL/CSA/CE-certified 1200A circuit breakers, molded case breakers, and per-miner overload safeguards.

Emergency Shutdown: Remote power-off switch and dual-layer waterproof cable inlets for fail-safe operations.

Smart Control (Optional)

IoT-Ready Monitoring: Real-time tracking of voltage, temperature, humidity, and equipment status via touchscreen or mobile app.

Auto-Adjust Fans & Pumps: Frequency converters enable dynamic speed control based on environmental data.

Technical Specifications

Parameter Details

Dimensions:16154×2438×2896mm (L×W×H) 53HQ Standard Container

Weight (Excluding Miners) ~9,000kg

Power Rating: 1MW (3250W ±5% per miner × 336 units)

Cooling Capacity: 1000kW heat dissipation @35°C outlet temperature (30°C ambient)

Certifications: CSC, CSA/UL (North America), CE/3C (Global Markets)

Electrical Safety: Dual distribution cabinets with tin-plated copper busbars, tested for 1000A continuous load

Noise Level: ≤70dBA @15m distance

Why Cadro?

Plug-and-Play Simplicity: Deploy miners in <24 hours with zero welding or complex wiring.

Extreme Durability: Corrosion-resistant white coating, IP55-rated components, and hurricane-grade structural integrity.

Global Compliance: Tailored for North American (NEC) and international standards, including 110V/240V sockets and UL-certified fans.

Lifetime Support: 24/7 remote diagnostics and on-call engineering teams for uninterrupted uptime.

Engineered for Mining’s Future. Built to Outperform.
