​What Is A Tail Lift Van?

Views: 220     Author: cadrotaillift     Publish Time: 2025-05-13      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Types of Tail Lift Systems

>> Parallel Arm Tail Lifts

>> Column Tail Lifts

>> Cantilever Tail Lifts

Operational Benefits

Industry Applications

Technical Considerations

Frequently Asked Questions

Citations:

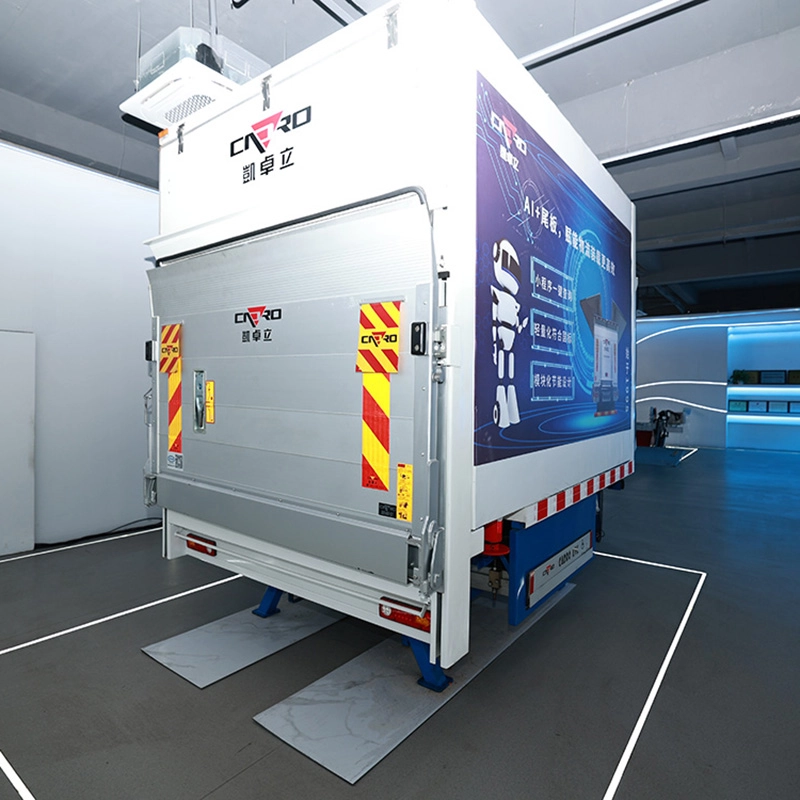

A tail lift van combines commercial vehicle functionality with an integrated hydraulic/pneumatic lifting platform at its rear cargo area. This specialized configuration enables efficient vertical transportation of goods between ground level and vehicle bed height, eliminating manual heavy lifting. The system consists of three core components:

Tail Lift8

1. Lifting Platform

The steel/aluminum deck (1.2–2.4 m² surface area) features anti-slip coating and foldable safety rails. Modern versions include auto-leveling sensors and overload protection systems.

2. Power Mechanism

Hydraulic systems dominate 78% of installations, using 12V/24V electric pumps to generate 150–300 bar pressure. Pneumatic alternatives suit refrigerated transport by avoiding hydraulic fluid leakage risks.

3. Control Interface

Waterproof control panels with emergency stop buttons and diagnostic LEDs enable single-person operation. Advanced models offer Bluetooth connectivity for maintenance alerts.

Types of Tail Lift Systems

Parallel Arm Tail Lifts

- Weight Capacity: 500–750 kg

- Deployment Time: 25–40 seconds

- Typical Use: Courier services, appliance delivery

- Advantage: Compact design preserves 92% of original cargo space

Column Tail Lifts

- Lifting Height: Up to 2.1 m above truck bed

- Max Load: 1,000–2,500 kg

- Ideal For: Double-deck transporters, construction material haulage

Cantilever Tail Lifts

- Platform Size: 2,400×1,800 mm standard

- Durability: 10,000+ cycle lifespan

- Special Feature: Ramps convert to 11° incline for forklift access

Operational Benefits

Labor Efficiency

Reduces loading crew requirements by 60% compared to manual handling. A study showed 34% faster turnover at distribution centers using tail lift-equipped fleets.

Payload Optimization

Lightweight aluminum models add only 120–180 kg to vehicle weight, preserving 85–90% of original payload capacity in 3.5-ton vans.

Safety Compliance

Meets ISO 10535 standards with:

- Automatic brake engagement during lifting

- Emergency descent override

- UV-resistant non-slip surfaces

Industry Applications

Medical Logistics

Temperature-controlled vans transport vaccine batches up to 800 kg while maintaining -70°C environments through rapid 90-second loading cycles.

E-Commerce Fulfillment

High-frequency models handle 120+ daily cycles in last-mile delivery networks, supporting parcel weights up to 25 kg each.

Waste Management

Reinforced platforms withstand 1,500+ kg compactor loads, with stainless steel construction resisting corrosive substances.

Technical Considerations

Power Requirements

- Hydraulic systems: 15–25A current draw during operation

- Battery backup maintains 3–5 emergency cycles

- Regenerative systems recover 18% of energy during descent

Maintenance Protocols

- Quarterly lubrication of pivot points

- Annual hydraulic fluid replacement (ISO VG 32 standard)

- 5,000-cycle bearing inspection

Regulatory Compliance

EU Directive 2006/42/EC mandates:

- Automatic load monitoring

- Dual-circuit braking

- Fail-safe platform locking

---

Frequently Asked Questions

1. What's the maximum incline a tail lift can handle?

Most systems operate safely on slopes up to 5°. Advanced models with gyroscopic adjustment handle 7° inclines.

2. How does cold weather affect performance?

Hydraulic systems require low-viscosity fluids below -15°C. Pneumatic alternatives maintain 95% efficiency at -30°C.

3. Can tail lifts be retrofitted?

Yes, but requires chassis reinforcement costing £1,200–£2,500. New installations are 18% more cost-efficient.

4. What's the typical lifespan?

7–12 years with proper maintenance. Critical wear components include hydraulic seals (replace every 50,000 cycles) and pivot bushings (30,000 cycles).

5. Are specialized licenses required?

EU operators need Certificate of Professional Competence (CPC) for lifts exceeding 1,000 kg capacity.
