Tail lifts have revolutionized the logistics and transportation industries by enabling efficient, safe, and ergonomic loading and unloading of goods. These hydraulic or electric-powered platforms are mounted on the rear of trucks, vans, and other commercial vehicles, providing a mechanical solution for raising and lowering cargo between ground level and the vehicle's cargo area. With a variety of designs available, each tailored to specific operational needs, understanding the different types of tail lifts and their applications is essential for fleet managers, logistics professionals, and transport operators.

Tail Lift5

Understanding Tail Lifts

A tail lift, sometimes referred to as a tail lift gate, is a mechanical device installed at the rear of a vehicle to facilitate the movement of goods to and from the cargo area. By automating the lifting process, tail lifts reduce manual labor, minimize the risk of injury, and increase overall efficiency in distribution, retail, construction, and many other sectors.

Types of Tail Lifts

H2: Column Tail Lifts

H3: Design and Operation

Column tail lifts, also known as railgate or column lifts, are among the most robust and widely used types. They are mounted vertically on the vehicle's rear via a frame, with a platform that moves up and down along fixed tracks. The platform typically operates at a 90-degree angle from the vehicle, providing a stable and secure surface for loading and unloading.

H3: Applications

Column lifts are popular for multi-drop distribution vehicles, such as home delivery trucks and logistics fleets. Their ability to lift above the vehicle's bed level makes them ideal for vehicles with non-standard dock heights. However, since the platform only extends at a right angle, it may not always sit flush on uneven ground, which can complicate operations in certain environments.

H3: Advantages and Limitations

- High lifting capacity, suitable for heavy loads

- Fast operation, ideal for frequent stops

- Limited adaptability on uneven terrain

H2: Rear Frame Column Tail Lifts

H3: Design and Operation

Rear frame column tail lifts are an evolution of the standard column lift, integrating the lift mechanism with the vehicle's top door. This design eliminates the need for a separate shutter door, reducing overall vehicle weight and improving fuel economy.

H3: Applications

These lifts are used in delivery vehicles where maximizing payload and reducing vehicle weight are priorities. The integrated design streamlines vehicle construction and enhances operational efficiency.

H2: Cantilever Tail Lifts

H3: Design and Operation

Cantilever tail lifts are mounted on the vehicle chassis and feature hydraulic rams on the hinges, allowing the platform to tilt and adjust its angle. This flexibility enables the platform to function both as a lift and as a ramp, accommodating varying heights and inclines.

H3: Applications

Cantilever lifts are ideal for handling heavier weights and are commonly used in industries that require the transportation of bulky or heavy machinery, such as construction and heavy industry. The platform can also serve as the rear door of the vehicle, further reducing weight.

H3: Advantages and Limitations

- Versatile platform angle for use as a ramp

- Suitable for heavy-duty applications

- Slower operational cycle compared to column or tuckaway lifts

H2: Tuckaway (Tuck-under) Tail Lifts

H3: Design and Operation

Tuckaway tail lifts feature a folding platform that neatly tucks beneath the vehicle's bed when not in use. This design keeps the rear of the vehicle unobstructed, allowing easy access to the cargo area without deploying the lift.

H3: Applications

Tuckaway lifts are favored in delivery operations where the tail lift is not needed at every stop. Drivers can quickly access the cargo area for smaller deliveries, improving efficiency and maneuverability in urban environments.

H3: Advantages and Limitations

- Space-saving design

- Quick access to the cargo area

- Lower lifting capacity compared to column or cantilever lifts

H2: Retractable Tail Lifts

H3: Design and Operation

Retractable tail lifts consist of a solid platform that extends horizontally from beneath the vehicle when needed. When not in use, the platform slides under the vehicle bed, combining the operational advantages of both cantilever and tuckaway lifts.

H3: Applications

These lifts are ideal for loading docks and environments where heavy loads are common. The retractable design allows for unobstructed rear access and is suitable for vehicles that require both high lifting capacity and operational flexibility.

H3: Advantages and Limitations

- High lifting capacity

- Unobstructed rear access when retracted

- More complex mechanism may require additional maintenance

H2: Parallel Arm Tail Lifts

H3: Design and Operation

Parallel arm lifts are characterized by their simple construction, featuring parallel arms attached to both sides of the lifting platform. These lifts are typically installed on smaller vehicles, such as pickup trucks and service vans, and use either dual hydraulic cylinders or a cable-pulley system.

H3: Applications

Small businesses and service industries often choose parallel arm lifts for their cost-effectiveness and straightforward operation. They are best suited for lighter loads and less demanding applications.

H3: Advantages and Limitations

- Simple, cost-effective design

- Lower lifting capacity

- Limited to smaller vehicles

H2: Slider Tail Lifts

H3: Design and Operation

Slider tail lifts are equipped with a mechanism that allows the platform to slide under the vehicle when not in use. This design maintains full access to the rear doors, making it possible to load with forklifts or other equipment.

H3: Applications

Slider lifts are commonly used in logistics operations where flexibility and space-saving are essential. They are suitable for vehicles that frequently operate in loading docks or require rear access for different types of loading equipment.

H3: Advantages and Limitations

- Space-saving, flexible design

- Maintains rear door access

- May be more expensive due to complex mechanism

H2: Special Purpose Tail Lifts

H3: Refrigerated Vehicle Lifts

These tail lifts are specifically designed for refrigerated transport, featuring insulated and sealed platforms to maintain the cold chain during loading and unloading.

H3: In-Vehicle Lifts

Installed inside the cargo area, in-vehicle lifts move goods between different levels within the vehicle, making them ideal for double-deck transport and specialized logistics operations.

Applications of Tail Lifts Across Industries

H2: Distribution and Retail

Tail lifts are indispensable in fast-paced distribution and retail environments, where they save time and labor during frequent loading and unloading operations. They enable a single operator to handle heavy or bulky goods safely and efficiently.

H2: Heavy Industry and Construction

In construction and heavy industry, tail lifts facilitate the safe transportation of machinery, building materials, and other heavy equipment. Cantilever and retractable lifts are particularly valued for their high lifting capacities.

H2: Food and Pharmaceutical Transport

Special purpose tail lifts, such as those designed for refrigerated vehicles, ensure that temperature-sensitive goods are handled without compromising the cold chain, maintaining product quality and compliance with regulations.

H2: Urban and Last-Mile Delivery

Tuckaway and parallel arm lifts are especially useful in urban delivery scenarios, where vehicle maneuverability and quick access to the cargo area are crucial. These designs allow drivers to adapt to varying delivery needs without sacrificing efficiency.

Choosing the Right Tail Lift

Selecting the appropriate tail lift depends on several factors:

- Vehicle type and size

- Nature and weight of the goods being transported

- Frequency of loading and unloading operations

- Specific operational environments (e.g., docks, uneven terrain, urban areas)

- Regulatory and safety requirements

Consulting with tail lift manufacturers or specialists can help ensure the chosen solution aligns with operational needs and maximizes return on investment.

Maintenance and Safety Considerations

Regular maintenance and inspection are essential for the safe and reliable operation of tail lifts. Operators should be trained in proper usage, including load limits, platform positioning, and emergency procedures. Adhering to manufacturer guidelines and local regulations helps prevent accidents and extends the lifespan of the equipment.

Frequently Asked Questions

Q1: What is the main difference between a cantilever and a column tail lift?

A: Cantilever lifts can tilt and act as a ramp, making them ideal for uneven surfaces and heavy loads, while column lifts move vertically along tracks and are better suited for frequent, fast operations on level ground.

Q2: When should I choose a tuckaway tail lift over a retractable tail lift?

A: Choose a tuckaway lift if you need quick, unobstructed access to the cargo area and handle lighter loads; opt for a retractable lift for higher lifting capacity and more demanding applications.

Q3: Are tail lifts suitable for all types of vehicles?

A: Tail lifts come in various designs to fit different vehicle types, from small vans to large trucks. However, the vehicle's size, chassis, and intended use will determine the most suitable tail lift type.

Q4: What safety features are important in tail lifts?

A: Key safety features include overload protection, anti-slip platforms, emergency stop buttons, and safety rails or barriers to prevent accidental falls.

Q5: How often should tail lifts be serviced?

A: Tail lifts should be inspected and serviced regularly according to the manufacturer's recommendations and local regulations, typically every six months or after a set number of operational cycles.

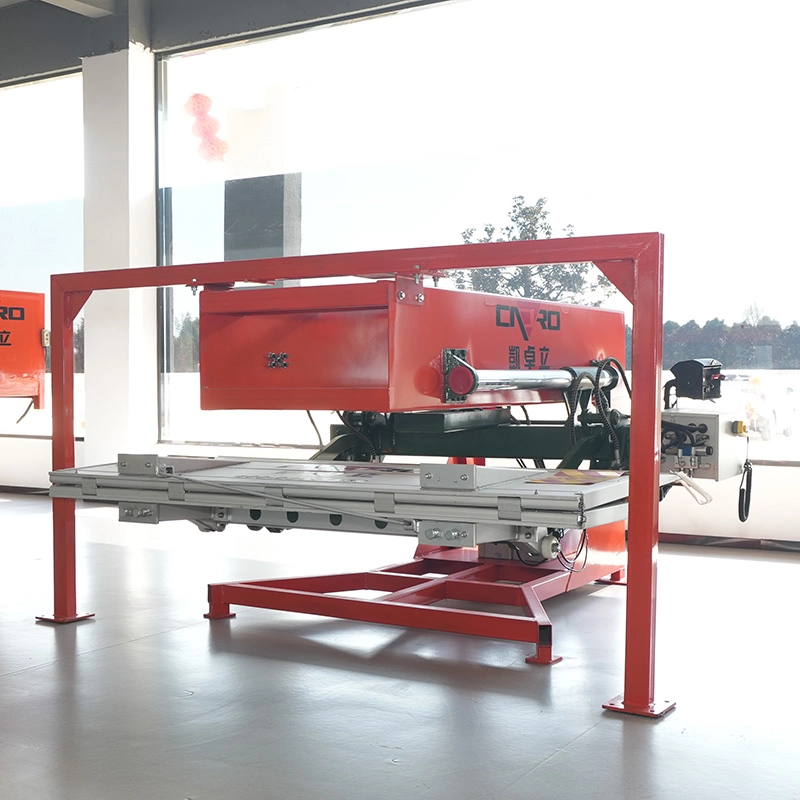

Tail Lift10[1] https://en.wikipedia.org/wiki/Tail_lift
