Dock levelers are essential equipment for warehouses, distribution centers, and manufacturing facilities, providing a smooth and safe transition between loading docks and trucks or trailers. Choosing a high-quality dock leveler is critical for operational efficiency, worker safety, and equipment longevity. This comprehensive guide explores the key features to evaluate when selecting a dock leveler, covering aspects from dimensions and load capacity to safety mechanisms and maintenance considerations.
A dock leveler bridges the gap and compensates for height differences between a dock and a truck bed. It acts as a ramp, enabling forklifts, pallet jacks, and other material handling equipment to move loads safely across the dock-truck interface. Dock levelers come in different types—mechanical, hydraulic, and air-powered—with varying capacities and functionalities tailored to specific operational requirements.
One of the most important specifications is the load capacity of the dock leveler, determined primarily by the weight of the forklift and the maximum load it carries. For light to normal usage, the dock leveler capacity should be at least 2.5 times the gross vehicle weight (GVW) of the forklift, while for heavy usage, a multiplier of 3 to 4 times is advisable. This ensures the dock leveler can safely support heavy loads without risk of structural failure.[1]
The length of the dock leveler affects the slope it creates between the dock and the trailer bed. Longer length results in a gentler slope, reducing wear and tear on material handling equipment and improving safety. Standard lengths range from 5 to 12 feet, with 8 feet being the most common choice for general applications. The width options typically include 6 ft, 6.5 ft, and 7 ft, with wider dock levelers accommodating larger trailers and side-by-side pallet arrangements. A wider dock leveler also provides more maneuvering room for forklifts and other equipment, enhancing operational flexibility.[3][1]
The dock leveler lip is a hinged extension that rests on the trailer bed, providing a continuous platform. According to standards, the lip must extend at least 4 inches onto the truck bed for stability. Standard lip length is around 16 inches, projecting 12 inches in front of the dock bumpers. Longer lips may be necessary for specialized trailers such as refrigerated units, which may require a lip projection of 14 inches or more to accommodate rear steps or different door configurations.[1]
Mechanical dock levelers are manually operated using a spring or lever system. They are typically more affordable and require less complex maintenance but may demand greater physical effort to operate and are suitable for lighter load environments. Mechanical levelers usually have load capacities up to about 55,000 pounds and are favored for smaller facilities or low-traffic docks.[9][1]

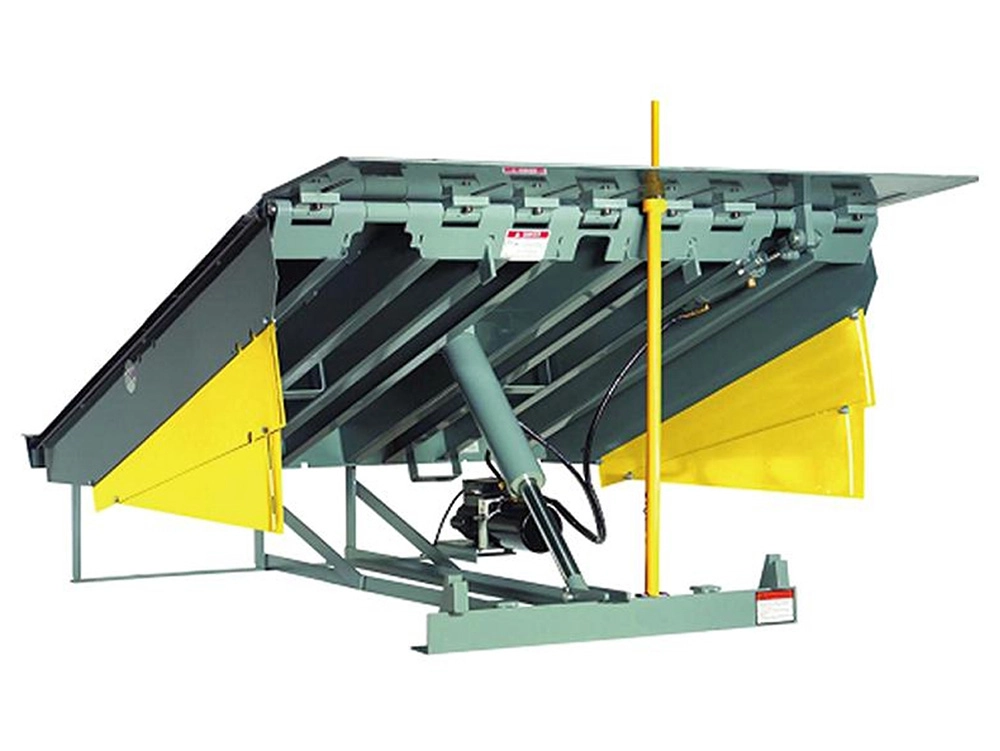

Hydraulic dock levelers use hydraulic cylinders and pumps to raise and lower the platform smoothly. They offer superior ease of operation with push-button activation, can handle load capacities up to 100,000 pounds, and are ideal for facilities with high truck traffic and heavy loads. Hydraulic systems generally offer better safety features, such as controlled descent and automatic return to stored position, minimizing operator effort and improving efficiency.[9][1]
Air bag or pneumatic dock levelers use inflatable bags to raise the platform. They have load capacities similar to mechanical levelers and can be more cost-effective for certain applications. However, they require regular inspection and maintenance of air bags and compressors to ensure reliable operation.[1]
A high-quality dock leveler should have a non-slip surface to prevent accidents caused by slips or falls. Diamond tread steel plates are common for their durability and traction. This is essential for both foot traffic and material handling equipment.[3]
Safety legs are structural components that engage when the dock leveler is in the working position, providing extra support to prevent collapse if the hydraulic system fails. Stop mechanisms ensure the platform locks securely, preventing unintended movement while in use. These features are vital for protecting workers and equipment during loading/unloading operations.[3][9]
Dock bumpers help protect the dock building and dock leveler from truck impact damage. High-quality bumpers absorb shock and provide a buffer while ensuring the dock leveler and dock structure remain intact. Additionally, side guards or wheel guides can be added to prevent forklifts from slipping off the edges.[3]
Dock levelers may be activated mechanically (manual pull chains or springs), hydraulically (push-button controls), or pneumatically (switch-operated air systems). Hydraulic push-button systems offer faster, easier operation, reduce worker fatigue, and enhance productivity, especially in busy loading docks.
High-quality dock levelers are constructed using heavy-duty steel with robust welds to withstand repeated heavy use. Protective coatings such as baked enamel or rust-inhibiting paint extend service life by preventing corrosion. Ease of maintenance, such as accessible lubrications points and modular parts that facilitate repairs, also contribute to long-term efficiency.[5]
Selecting a dock leveler with proper dimensions and lip length to accommodate common truck sizes and trailer heights used by your operation is critical. The dock leveler must bridge effectively any height difference while maintaining a safe slope compatible with your forklifts or pallet jacks' grade capacity.
Consider environmental exposure when choosing materials and protective finishes—outdoor docks and docks in corrosive environments (e.g., salt exposure in cold climates) require higher corrosion resistance, such as galvanized steel or special coatings.
Dock levelers can be customized with accessories like dock seals and shelters to protect the dock area from weather, enhance energy efficiency, and improve working conditions.
When choosing a dock leveler, carefully evaluate load capacity, size, type, and safety features to ensure the equipment meets your operational needs and safety standards. Hydraulic dock levelers with push-button activation provide advanced features and durability for heavy and frequent use, while mechanical and air bag options remain suitable for lighter applications. Pay attention to surface traction, safety supports, and compatibility with your dock and trucks. Proper installation and regular maintenance will maximize performance and lifespan.
Q1: What load capacity should I choose for my dock leveler?
A: Choose a dock leveler with a load capacity at least 2.5 times the gross vehicle weight of your forklift plus load for light to normal use, or up to 4 times for heavy use.
Q2: How do I decide the length and width of a dock leveler?
A: Length depends on the height difference between dock and trailer to maintain a safe slope; widths often range from 6 ft to 7 ft to accommodate truck sizes and forklift maneuvering space.
Q3: What are the advantages of hydraulic dock levelers?
A: They provide easy push-button operation, better safety controls, higher load capacities, and smoother platform movement compared to mechanical types.
Q4: How important are safety features on dock levelers?
A: Extremely important. Features like non-slip surfaces, safety legs, locked stops, and bumpers protect workers and equipment by preventing accidents and structural failures.
Q5: What maintenance is required for dock levelers?
A: Regular lubrication, inspection of structural parts and hydraulic or air systems, and prompt repairs keep dock levelers operating safely and extend their service life.
