Installing a wheelchair lift in your vehicle can greatly enhance accessibility and convenience for wheelchair users. Proper wiring is essential for the safe and efficient operation of the lift. This comprehensive guide will walk you through the steps to wire a wheelchair lift correctly, covering preparation, wiring components, installation procedures, and safety tips.
---

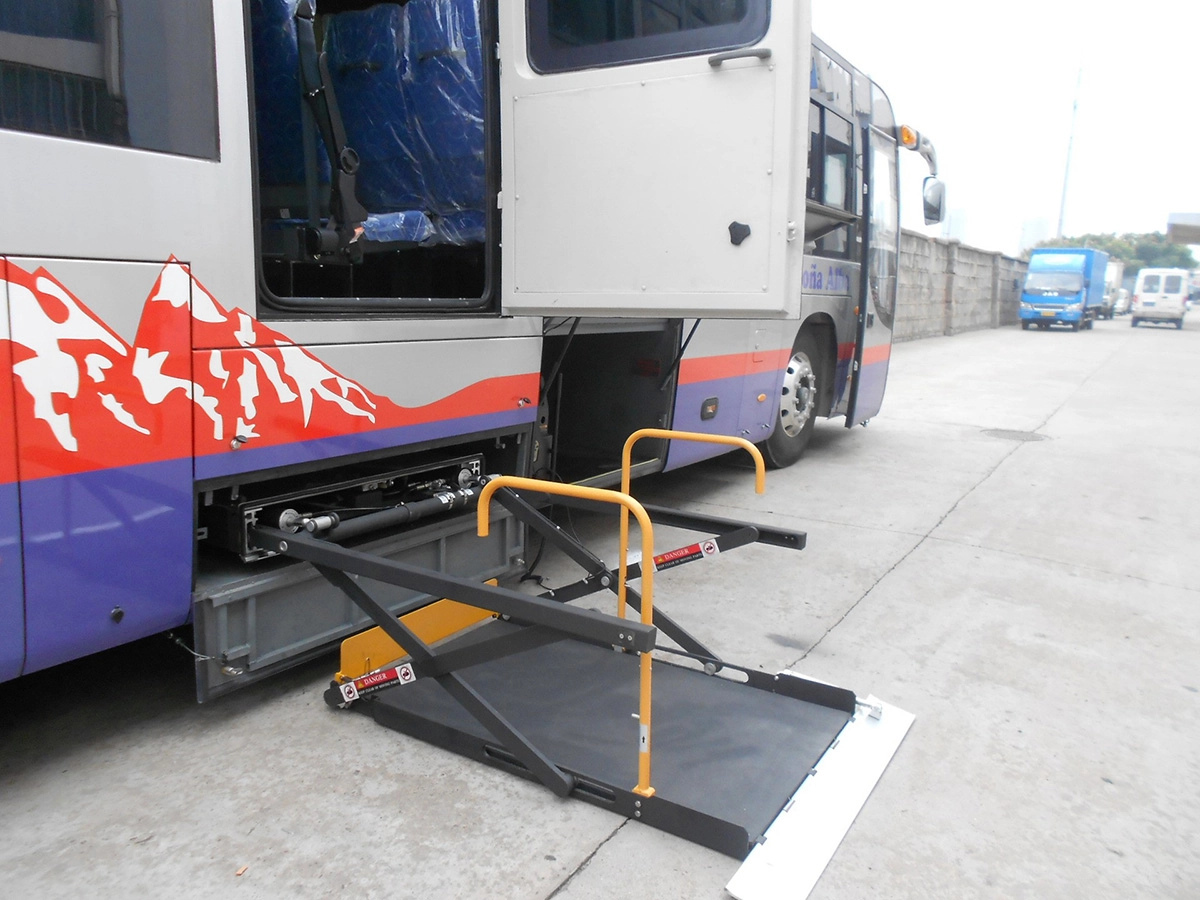

A wheelchair lift is a mechanical device installed in vehicles to assist wheelchair users in entering and exiting the vehicle safely and comfortably. It typically consists of a platform that raises and lowers, controlled by an electric motor powered by the vehicle's battery.
The wiring connects the lift's motor and controls to the vehicle's electrical system. Proper wiring ensures the lift operates smoothly without electrical faults, prevents damage to the vehicle's electrical components, and guarantees user safety.
---
Before starting the wiring process, gather the following tools and materials:
- Wiring harness kit (usually included with the lift)
- Circuit breaker or fuse (typically 20-30 amps)
- Wire strippers and crimpers
- Electrical tape and heat shrink tubing
- Zip ties for securing wires
- Screwdrivers and wrenches
- Multimeter or test light for electrical testing
- Drill and drill bits (if needed for routing wires)
- Safety gloves and goggles
---
- Disconnect the Battery: Always disconnect the vehicle's battery before starting any electrical work to avoid shocks or short circuits.
- Locate the Battery: Identify the vehicle's 12-volt battery, which is usually under the hood or in the trunk.
- Plan the Wiring Route: Determine the safest path to run the wiring from the battery to the lift's mounting location, avoiding moving parts, exhaust systems, sharp edges, and brake or fuel lines.
- Unwind and Inspect the Harness: Lay out the wiring harness flat and check for any damage.
- Connect the Ground Wire: Attach the black ground wire to the negative terminal of the battery or a clean, unpainted metal surface on the vehicle chassis.
- Connect the Power Wire: Attach the red power wire with an inline circuit breaker to the positive terminal of the battery. The circuit breaker protects the system from electrical overload.
- Route the Wiring: Carefully run the wiring harness along the planned route, securing it with zip ties. Use grommets when passing wires through metal panels to prevent abrasion.
- Plug in the Lift Connector: Most lifts come with a specific plug that connects the wiring harness to the lift motor and controls. Ensure the connector is firmly seated.
- Install the Interlock System: Some lifts include an interlock system that prevents the vehicle from moving while the lift is in use. Wire this system according to the manufacturer's instructions.
- Reconnect the Battery: After all connections are made, reconnect the vehicle's battery.
- Test the Lift Operation: Use the lift's control switch to raise and lower the platform, checking for smooth operation.
- Check for Electrical Issues: Use a multimeter to verify voltage at various points and ensure there are no shorts or loose connections.
---
While each wheelchair lift model may have specific wiring diagrams, the general wiring includes:
- Power Wire (Red): Connects to the battery positive terminal through a circuit breaker.
- Ground Wire (Black): Connects to the battery negative terminal or vehicle chassis.
- Control Wires: Connect the lift controls to the motor and safety systems.
- Interlock Wires: Connect to the vehicle's brake or transmission system to prevent operation while driving.
---
- Always disconnect the battery before starting.
- Use a circuit breaker or fuse to protect the wiring.
- Avoid routing wires near heat sources or moving parts.
- Secure wires firmly to prevent chafing or damage.
- Double-check all connections for tightness and proper insulation.
- Test the lift thoroughly before regular use.
---
- Lift Does Not Operate: Check battery connections, circuit breaker, and wiring harness for loose or damaged wires.
- Lift Operates Slowly or Intermittently: Inspect for poor electrical connections or insufficient wire gauge.
- Fuse or Circuit Breaker Trips: Look for short circuits or damaged wiring.
- Controls Do Not Respond: Verify control switch wiring and interlock system connections.
---
Q1: Can I wire a wheelchair lift myself, or should I hire a professional?
A1: While wiring a wheelchair lift can be a DIY project if you have electrical experience, hiring a professional ensures safety and compliance with vehicle electrical standards.
Q2: What gauge wire should I use for the lift wiring?
A2: Typically, 10 to 12 gauge wire is used, but always follow the manufacturer's recommendations for wire size to handle the motor's current draw.
Q3: Is a circuit breaker necessary for wiring a wheelchair lift?
A3: Yes, a circuit breaker or fuse protects the wiring and lift motor from electrical overloads and potential fire hazards.
Q4: How do I know if the wiring harness is compatible with my vehicle?
A4: Most wiring harnesses are designed to fit a wide range of vehicles, but check the lift manufacturer's specifications and installation instructions for compatibility.
Q5: What should I do if the lift's motor sounds weak or sluggish?
A5: This may indicate poor electrical connections, low battery voltage, or an undersized wire gauge. Inspect wiring and battery condition.
---
Wiring a wheelchair lift involves careful planning, proper tools, and adherence to safety standards. By following this guide, you can ensure your lift is wired correctly for reliable and safe operation, enhancing mobility and independence for wheelchair users.
---
