Tail lifts are essential mechanical systems for loading/unloading cargo on trucks, vans, and specialized vehicles. This guide covers the design, materials, and assembly steps for constructing a basic tail lift, emphasizing safety and functionality.
---
Mechanical Linkage Systems

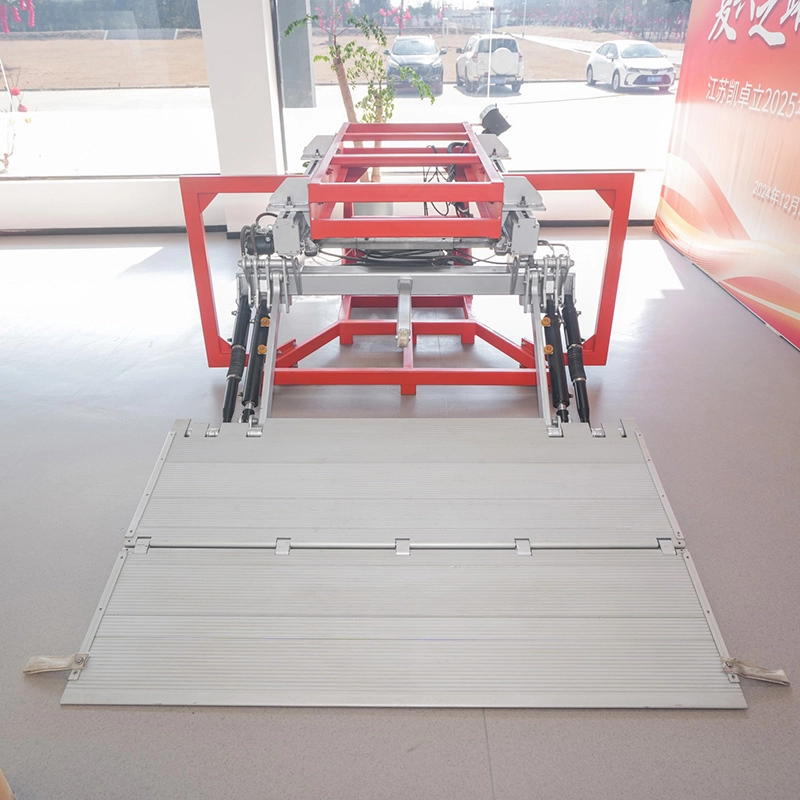

Tail lifts rely on planar four-bar linkage mechanisms to achieve stable vertical translation. A parallelogram configuration ensures the platform remains horizontal during lifting. Hydraulic cylinders drive the motion, synchronized on both sides of the vehicle chassis for balanced force distribution[3].
Hydraulic Actuation
Dual hydraulic cylinders control the lift and tilt motions. The "rollover" movement (platform rotation from vertical to horizontal) is managed by a separate cylinder system, while the lifting action uses synchronized cylinders connected to a four-bar linkage[3][5].
---
Aluminum Alloys
Lightweight aluminum (e.g., AlMg4.5Mn0.7) is preferred for its high strength-to-weight ratio, corrosion resistance, and recyclability. Automated MIG welding with argon shielding ensures durable joints[4].
Steel Components
Critical load-bearing parts like hinges and bolts require high-tensile steel to withstand stress. Galvanized coatings prevent rust in humid or salt-exposed environments[4].
---
1. Frame Assembly
- Weld the parallelogram linkage arms (OA, AC, CD, OD) using robot-assisted MIG welding.
- Attach hydraulic cylinder mounts to the vehicle chassis, ensuring alignment with the linkage[3][4].
2. Platform Construction
- Cut aluminum sheets to form the deck, reinforced with crossbeams.
- Install safety features: anti-slip surfaces, foldable side rails, and toe guards[2][5].
3. Hydraulic System Installation
- Connect dual cylinders to the four-bar linkage.
- Integrate a pump, control valves, and emergency stop mechanisms.
- Use hydraulic hoses rated for ≥250 bar pressure[3][5].
---
Load Testing
- Conduct static tests at 125% of maximum rated capacity (e.g., 1,250 kg for a 1,000 kg lift).
- Verify smooth operation across full lift cycles (0°–90° tilt, ground-to-bed height)[2][5].
Emergency Features
- Install manual lowering valves and mechanical locks.
- Add sensors to detect overloads or misalignment[5].
---
Chain Tensioning
- Adjust anchor bolts to level the platform within 6 mm of the truck bed.
- Tighten locknuts to specified torque values after alignment[2][5].
Hydraulic Checks
- Monitor oil levels with the platform closed.
- Inspect seals and hoses monthly for leaks[5].
---
1. Why use aluminum for tail lifts?
Aluminum reduces weight by ~40% compared to steel, increasing payload capacity and fuel efficiency[4].
2. How are hydraulic cylinders synchronized?
Parallel linkage systems and matched flow control valves ensure equal force distribution[3].
3. What safety certifications are required?
CE marking (EU) or ANSI MH28.1 (US) compliance for load capacity and stability[2].
4. How to adjust platform height?
Modify chain tension via anchor bolts-5 mm of adjustment shifts the platform 5 mm vertically[2].
5. Can tail lifts be retrofitted?
Yes, but chassis reinforcement and professional welding are mandatory for structural integrity[4].
---
