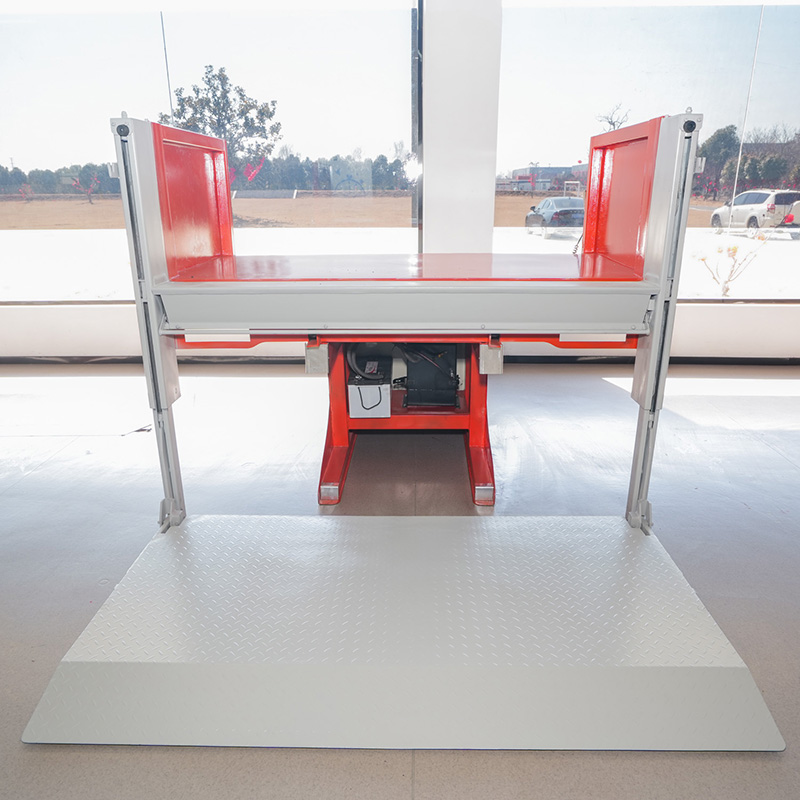

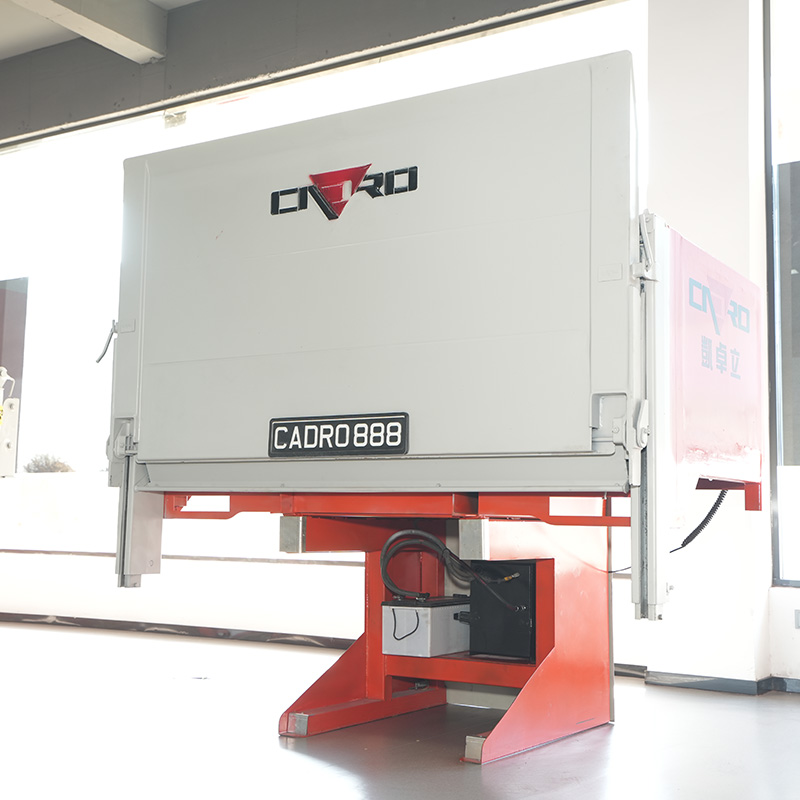

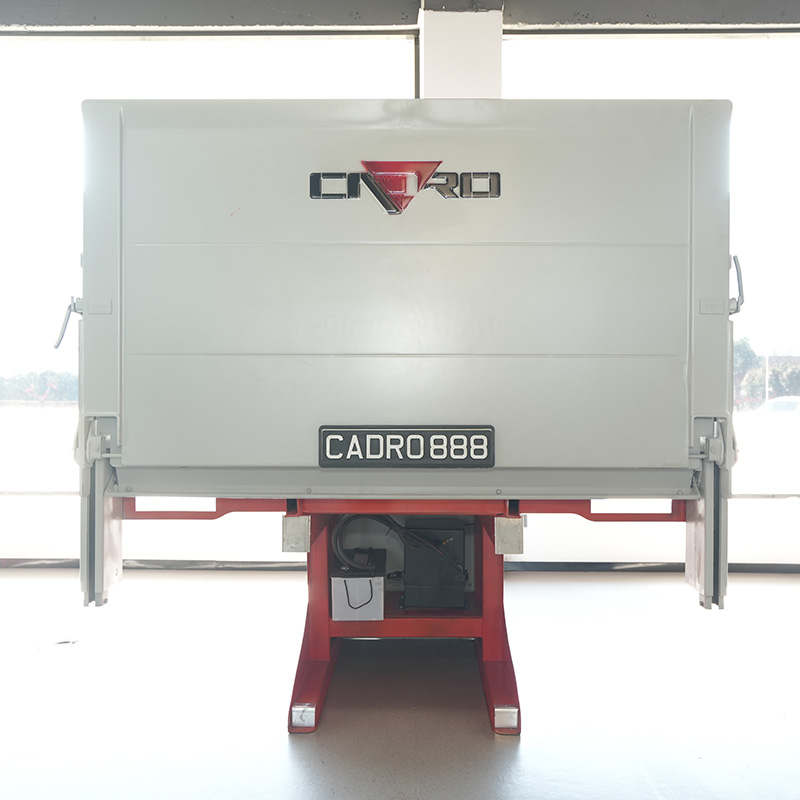

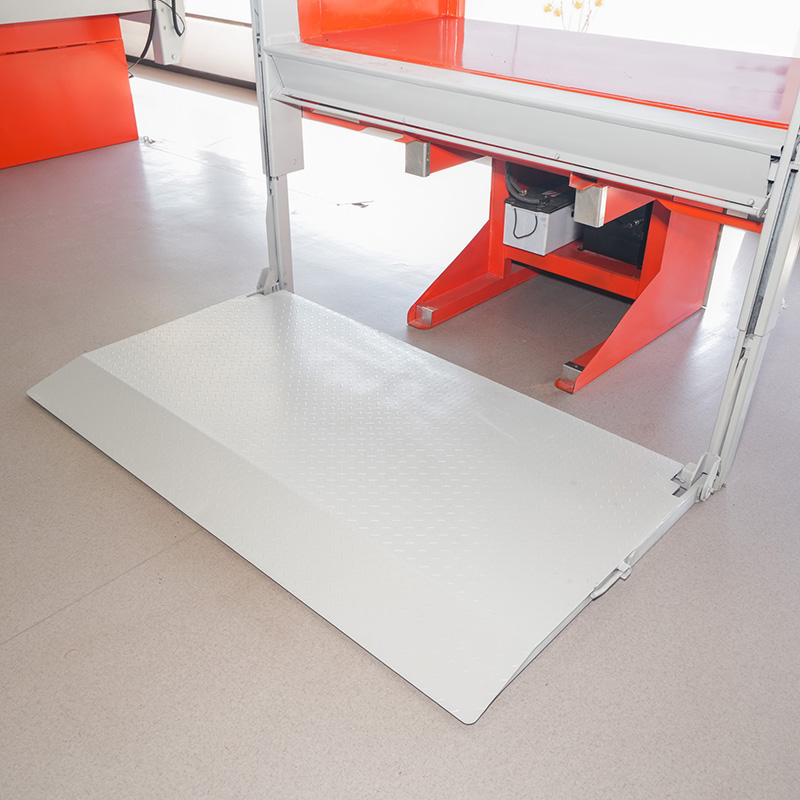

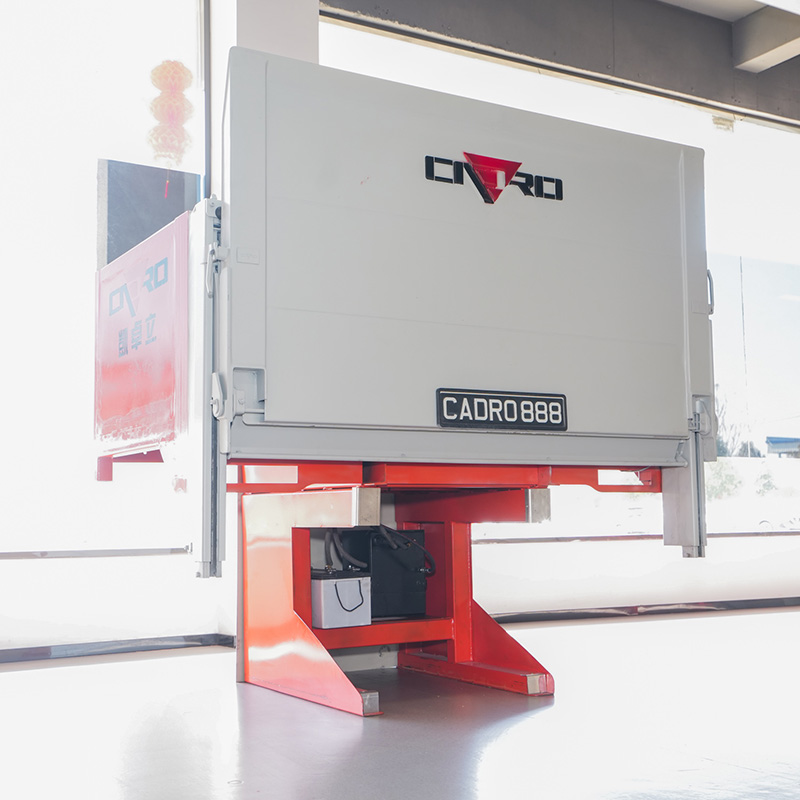

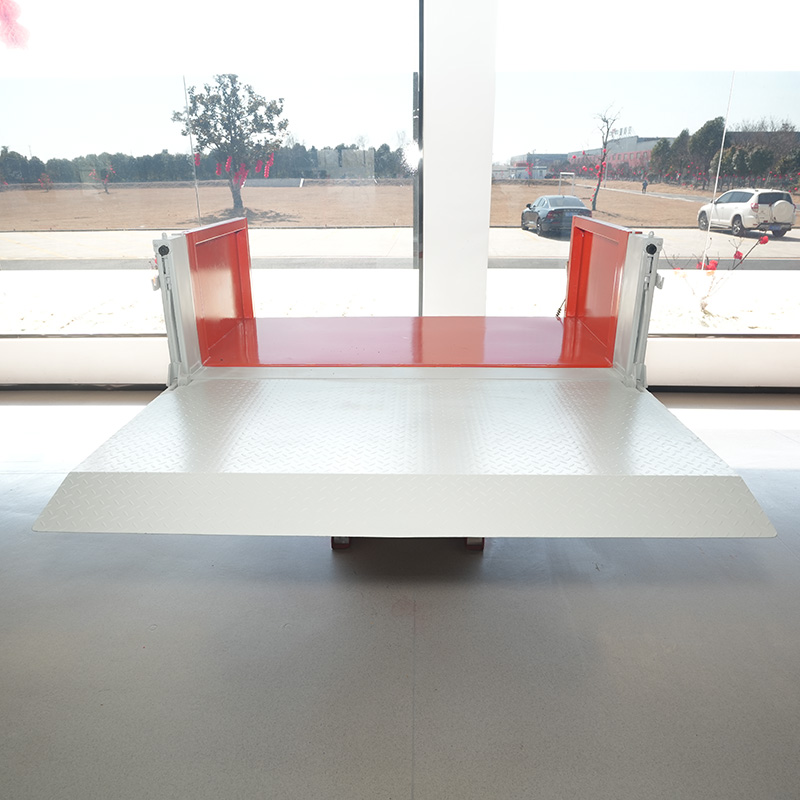

Dual-Rail Model Column Tail Lift

Product Overview:
600kg Series Dual-Rail Model: Shorter Columns, Higher Lifting Capacity.

Availability:



Inquire

Model:
CD-QBCZ06/100A

Dual-Rail Model Column Tail Lift Power Lift Gate Waltco Lift Gate Lift End Gate Liftgate For Box Truck Platform Lift Lift Gates For Trucks Gate Lift Lifting Platform Truck Tailgates

Product Description

Features:

· Lightweight Design: Key load-bearing components are crafted from high-strength steel plates, ensuring durability without excess weight.

· Compact Installation: Requires minimal rear space, enabling zero-tail clearance installation for enhanced versatility.

· Level Loading Platform: The platform remains perfectly horizontal during operation, eliminating tilt angles and preventing cargo slippage during loading.

· Integrated Safety System: Equipped with a safety lock bar, the system automatically halts operation if cargo interferes with the crossbeam during lifting, ensuring maximum safety.

· Versatile Application: Ideal for use with flatbed trucks and sanitation vehicles, offering reliable performance across various applications.

· Customization Services Available：Lifting weight is less than 1000KG.

This product combines advanced engineering with user-centric design, delivering superior functionality and safety for your hydraulic tailgate needs.

Specifications：

Model	CD-QBCZ06/100A
Platform size	2000mm W×1100mm H (customizable to fit your vehicle body)
Lifting capacity	600kg
Lifting Height	1000mm
Working Pressure	16MPa
Power Pack	12V / 24V（DC）
Lifting speed	80mm/s
Weight	370kg
