Loading docks are critical points in logistics and warehouse operations, serving as the interface between transportation vehicles and the facility. To ensure smooth, safe, and efficient loading and unloading, dock levelers are essential equipment. Among the various types available, air-powered and hydraulic dock levelers are two of the most popular choices. Understanding their differences is vital for businesses to select the right dock leveler that fits their operational needs, safety requirements, and budget.

This article provides a comprehensive comparison between air-powered and hydraulic dock levelers, discussing their operating mechanisms, installation, maintenance, durability, safety features, costs, and ideal applications.

Dock Leveler

What Is a Dock Leveler?

A dock leveler is a mechanical or powered platform that bridges the gap between a loading dock and a truck or trailer bed. It compensates for height differences, allowing forklifts and other material handling equipment to move goods safely and efficiently.

Overview of Air-Powered and Hydraulic Dock Levelers

Air-Powered Dock Levelers

Air-powered dock levelers use a pneumatic system to raise and lower the platform. When activated, an electric blower pumps air into a large, durable airbag beneath the leveler deck. The inflation of this airbag lifts the deck to the height of the truck bed. The dock leveler lip, which bridges the dock and trailer, extends mechanically. After use, deflating the airbag lowers the deck and retracts the lip back to the dock floor level.

This system is semi-automatic, requiring the operator to push a button to inflate the airbag and extend the lip, but the lip itself moves mechanically rather than hydraulically.

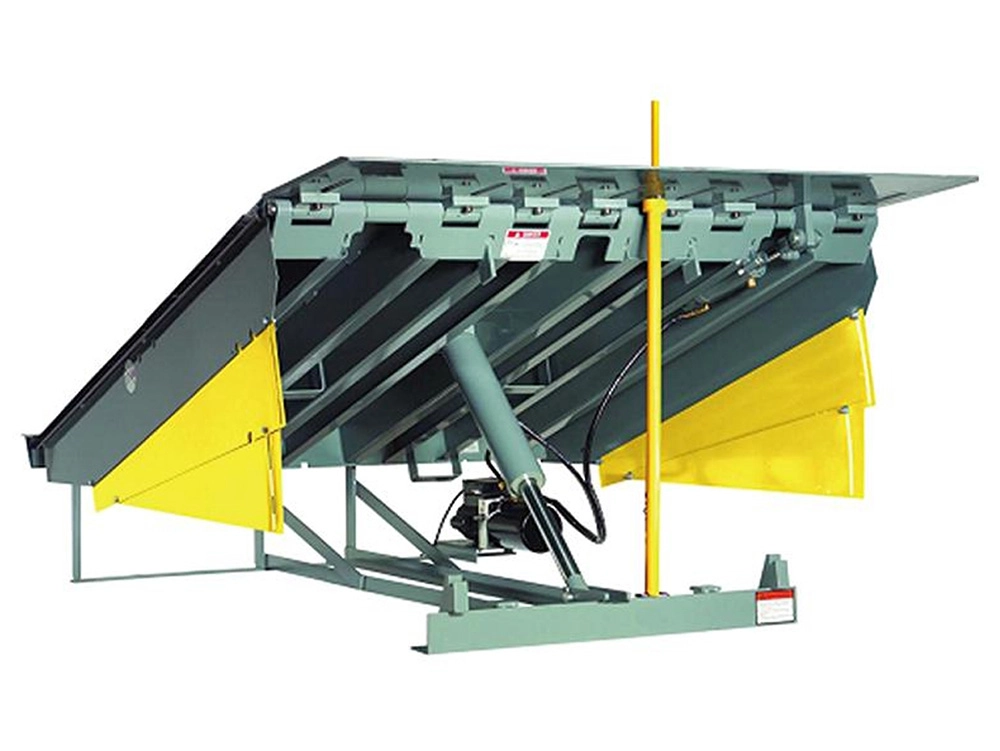

Hydraulic Dock Levelers

Hydraulic dock levelers operate using hydraulic cylinders powered by pressurized hydraulic fluid. When the operator presses a button, hydraulic fluid is pumped to the cylinders, which smoothly lift the deck and extend the lip. The entire process is fully automatic, with hydraulic systems controlling both the deck lifting and lip extension.

Hydraulic dock levelers provide a controlled, smooth transition from dock to trailer and automatically return to their resting position after use.

Key Differences Between Air-Powered and Hydraulic Dock Levelers

Operating Mechanism

- Air-Powered: Uses compressed air to inflate an airbag that lifts the deck; the lip extends mechanically. It is a semi-automatic system.

- Hydraulic: Uses hydraulic cylinders powered by pressurized fluid to lift the deck and extend the lip automatically. It is a fully automatic system.

Installation Complexity

- Air-Powered: Typically simpler to install due to fewer moving parts and no hydraulic fluid lines. The absence of hydraulic components reduces installation complexity.

- Hydraulic: More complex installation involving hydraulic pumps, fluid reservoirs, and hydraulic lines. Proper setup is crucial for reliable operation.

Maintenance Requirements

- Air-Powered: Requires regular inspection of the airbag and blower system for leaks, wear, or damage. The airbag can be vulnerable to punctures from debris in the dock pit, necessitating cleaning and preventive maintenance.

- Hydraulic: Requires maintenance of hydraulic fluid levels, seals, hoses, and cylinders. Hydraulic systems generally have fewer parts exposed to debris, making cleaning easier and reducing damage risk.

Durability and Lifespan

- Air-Powered: Durability depends largely on the airbag's condition. Airbags can be punctured or damaged by sharp debris, potentially leading to costly repairs.

- Hydraulic: Built for heavy-duty use with robust components designed to withstand high loads and frequent cycles. Hydraulic levelers tend to have longer lifespans and greater reliability.

Safety Features

- Air-Powered: Uses safety legs to prevent free fall, but these can cause “stump-out” issues when trailer beds are lower than the dock, leading to potential damage and safety hazards due to the dock lip being forced into severe angles.

- Hydraulic: Equipped with velocity fuses that prevent free fall without interfering with normal operation, providing superior safety and reducing risk of accidents.

Operational Efficiency

- Air-Powered: Offers push-button operation and is simpler to use than mechanical levelers but requires manual intervention for some functions.

- Hydraulic: Fully automatic with push-button activation for both deck and lip, optimizing workflow and reducing manual labor and strain on operators.

Cost Considerations

- Air-Powered: Generally less expensive upfront and simpler for occasional use. However, maintenance costs can increase due to airbag repairs.

- Hydraulic: Higher initial investment but lower long-term maintenance costs and fewer repairs, making it more cost-effective for high-volume, heavy-duty applications.

Environmental and Cleaning Aspects

- Air-Powered: The airbag carriage can trap dirt and debris, requiring regular cleaning to prevent damage. Cleaning is time-consuming but necessary.

- Hydraulic: Hydraulic components are less intrusive and easier to clean around, reducing downtime and maintenance efforts.

Voltage and Power Requirements

- Air-Powered: Usually available in 110-volt single-phase, which can be costlier to install for larger facilities.

- Hydraulic: Available in a range of voltages, potentially reducing electrical installation costs.

Advantages and Disadvantages Summary

Feature Air-Powered Dock Levelers Hydraulic Dock Levelers
Operation Semi-automatic, pneumatic airbag lift Fully automatic, hydraulic cylinder lift
Installation Simpler, fewer components More complex, requires hydraulic setup
Maintenance Requires airbag inspection and cleaning Requires hydraulic fluid and component checks
Durability Airbag vulnerable to punctures More robust, designed for heavy-duty use
Safety Safety legs with stump-out risk Velocity fuse for free fall protection
Efficiency Push-button operation, less automation Push-button, fully automatic operation
Cost Lower initial cost, higher maintenance Higher initial cost, lower maintenance
Cleaning Airbag carriage traps debris, needs frequent cleaning Easier to clean, less debris accumulation
Power Supply Typically 110V single-phase Multiple voltage options available

Which Dock Leveler Is Right for Your Facility?

Choosing between air-powered and hydraulic dock levelers depends on several factors:

- Frequency of Use: Hydraulic levelers are better suited for high-volume, heavy-duty operations due to their durability and efficiency. Air-powered levelers are more appropriate for occasional or lighter use.

- Safety Requirements: Hydraulic dock levelers offer superior safety features, reducing risks associated with free fall and dock damage.

- Budget: Air-powered dock levelers have a lower upfront cost but may incur higher maintenance expenses. Hydraulic dock levelers require a higher initial investment but provide cost savings over time.

- Maintenance Capacity: Facilities with limited maintenance resources might prefer hydraulic levelers for their lower maintenance demands.

- Environmental Conditions: For environments with lots of debris or strict cleaning protocols, hydraulic levelers are preferable due to easier maintenance and less susceptibility to damage.

Conclusion

Hydraulic dock levelers generally outperform air-powered dock levelers in terms of safety, durability, maintenance, and operational efficiency. While air-powered dock levelers offer simplicity and lower initial costs, their susceptibility to airbag damage and maintenance needs can lead to higher long-term expenses. Hydraulic dock levelers provide fully automatic operation, enhanced safety features, and longer service life, making them the preferred choice for demanding loading dock environments.

Frequently Asked Questions (FAQs)

1. What is the main operational difference between air-powered and hydraulic dock levelers?

Air-powered dock levelers use compressed air to inflate an airbag that lifts the deck, while hydraulic dock levelers use pressurized hydraulic fluid to power cylinders that lift the deck and extend the lip automatically.

2. Which dock leveler requires less maintenance?

Hydraulic dock levelers generally require less maintenance because they have fewer parts exposed to debris and do not rely on an airbag that can be punctured.

3. Are air-powered dock levelers safer than hydraulic ones?

Hydraulic dock levelers have superior safety features, such as velocity fuses that prevent free fall, whereas air-powered levelers rely on safety legs that can cause operational issues like stump-out.

4. Can air-powered dock levelers be used in high-volume loading docks?

Air-powered dock levelers are better suited for occasional or lighter use; hydraulic dock levelers are recommended for high-volume, heavy-duty operations.

5. Which dock leveler is more cost-effective in the long run?

Hydraulic dock levelers tend to be more cost-effective over time due to lower maintenance costs and greater durability, despite a higher initial purchase price.
