Standard Hydraulic Supporting System

Product Overview:

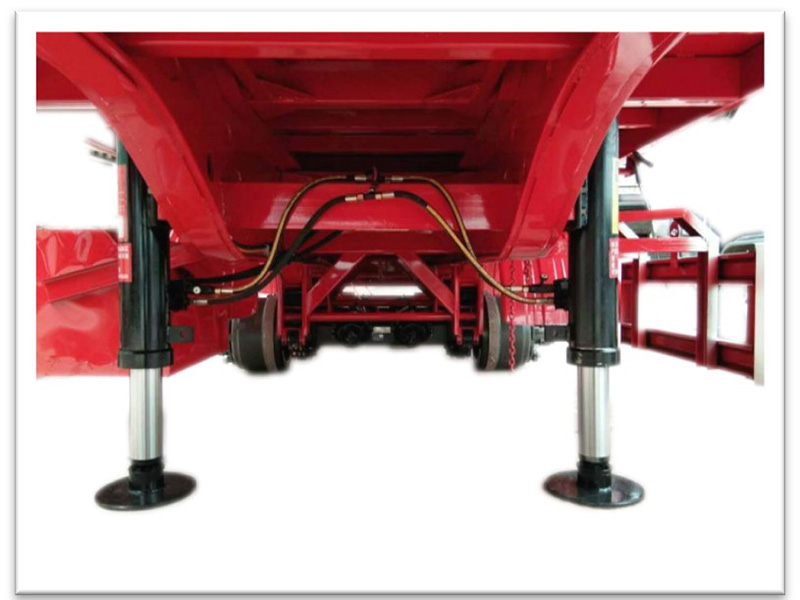

The Hydraulic Supporting Leg System, powered by the vehicle's battery, uses mounted support leg cylinders for stability. These legs extend to lift the vehicle and transfer weight, reducing load on the leaf springs. Post-use, they retract to maintain vehicle departure angle and ensure safety. This system enhances stability, reduces component wear, and supports safe operations across applications.

Availability:



Inquire

Standard Hydraulic Supporting System Hydraulic Support Hydraulic Lift Support Hydraulic Work Support Heavy Duty Truck Parts Hydraulic Lift Jack Hydraulic Products Hydraulic Liftgate Hydraulic Liftgate For Box Truck Truck Hydraulic Liftgate

Product Description

Key Parameters:

· Number of Legs: 4

· Rated Pressure: 16 MPa

· Operating Voltage: 24±4 VDC (or 12±1 VDC, powered by vehicle battery)

· Operating Environment: Temperature -40°C to +45°C, Humidity 20% RH to 90% RH

Features

1. Independent Hydraulic Power Unit: Powered by the vehicle battery, integrating motor, oil pump, and hydraulic valves for compact and efficient operation.

2. Easy System Debugging: High reliability and stability, ensuring smooth performance.

3. Flexible System Design: Extends the lifespan of hydraulic components and structural parts.

4. Safety Devices: Optional safety mechanisms to prevent accidental vehicle descent.

5. High-Capacity Imported Contactors: Ensures durability and longevity of electrical components.

6. Integrated Design: Simplifies on-site installation and maintenance, reducing downtime.

7. Lightweight Construction: Enhances portability and ease of use.

Model	Single Leg Load Capacity	Total Vehicle Weight (Q) & Suitable Vehicles	Unloaded Beam-to-Ground Height (H1)
CDZTF30/260D12	1.3T	Q ≤ 5T (e.g., Iveco, Transit, small trucks)	H1 = 650mm
CDZTF45/350D24	2.5T	Q ≤ 9T (e.g., 8M long buses, medium trucks)	H1 = 650mm
CDZTF60/350D24	5T	Q ≤ 20T (e.g., 10M long buses, medium trucks)	H1 = 750mm
CDZTF80/400D24	8T	Q ≤ 30T (e.g., 12M long buses, medium trucks)	H1 = 750mm
CDZTF100/400D24	10T	Q ≤ 40T (e.g., large trucks, tankers, trailers)	H1 = 800mm

Note: H1 refers to the height from the lowest point of the vehicle beam to the ground.

If the vehicle's beam-to-ground height differs by more than 40mm from H1, only an additional adapter bracket is required, eliminating the need for custom leg systems.
