Pickup Truck Tail Lift

Rated Load: 500kg
Product Overview:

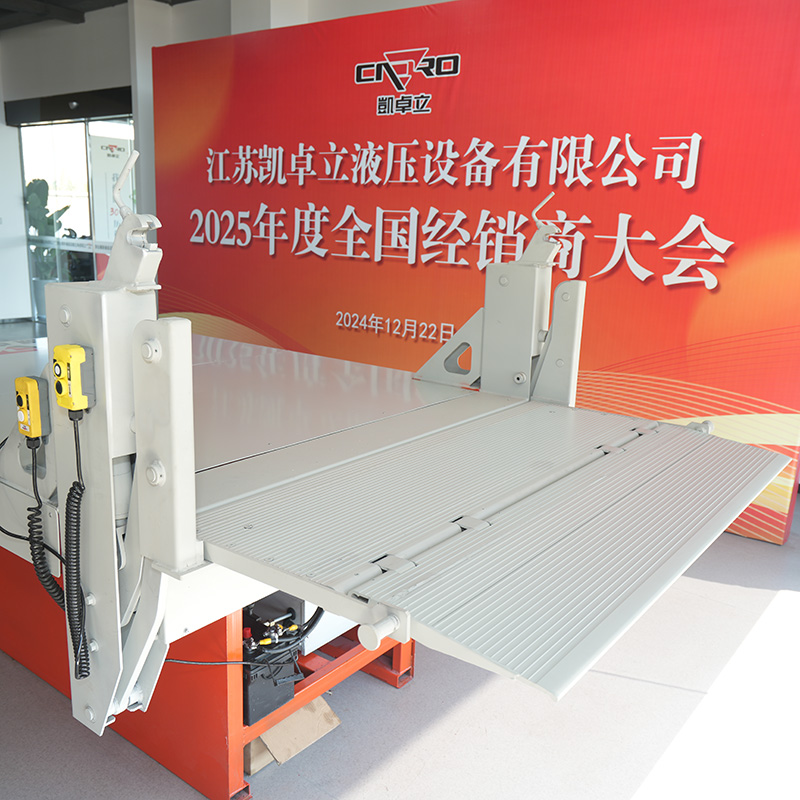

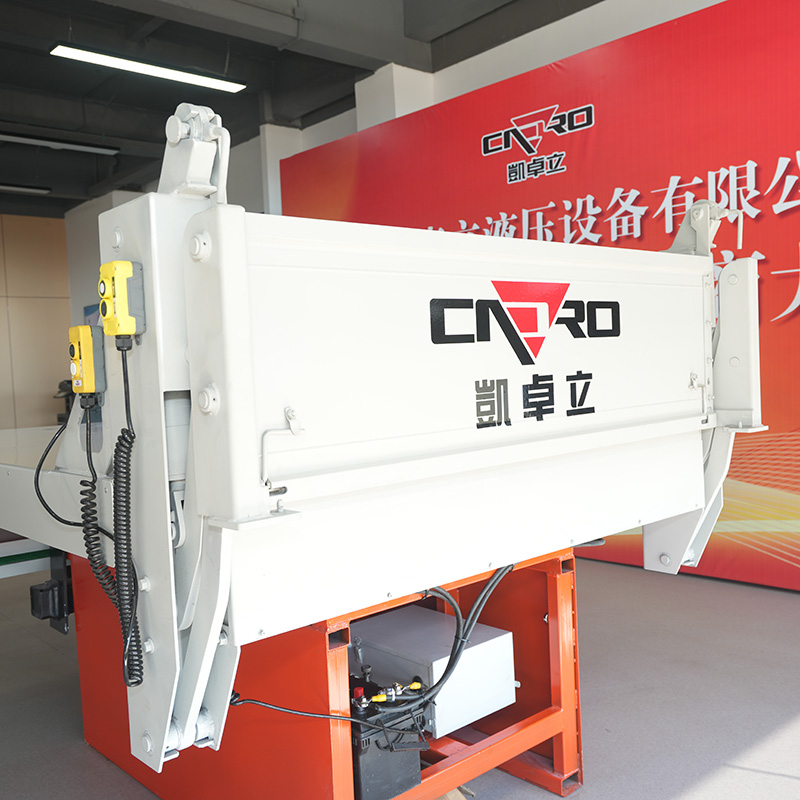

Our pick up truck tail lift, made from durable aluminum alloy, offers a lightweight, compact design with zero-tail clearance and a level loading platform to prevent cargo slippage, perfectly suited for various vehicles including small flatbed trucks and pickup trucks, with a sleek appearance achieved by integrating the power system and pipelines.

Availability:



Inquire

Model:
CD-QBPB05/110

Pickup Truck Tail Lift Trailer Tailgate Lift Aluminum Liftgate For Box Truck Aluminum Lift Gates Aluminum Lift Gates For Trucks Aluminum Liftgate Platform Pickup Truck Lift Gate Commercial Truck Lift Gates Trailer Tail Gate Tailgate Truck

Product Description

Features:

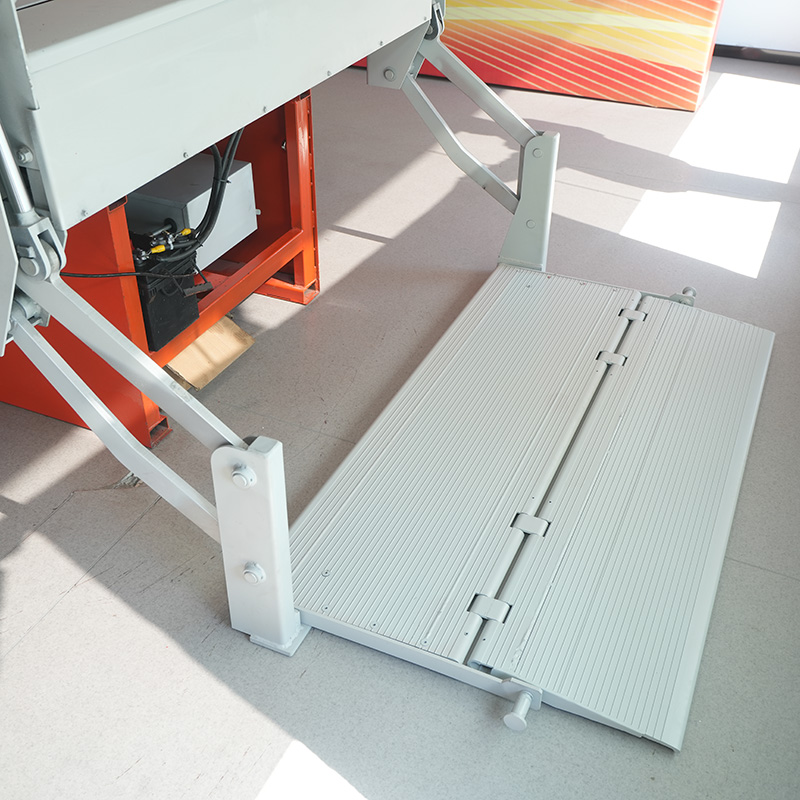

· Lightweight Design: The loading platform is constructed from aluminum alloy profiles.

· Compact Installation: Requires minimal rear space, enabling zero-tail clearance installation.

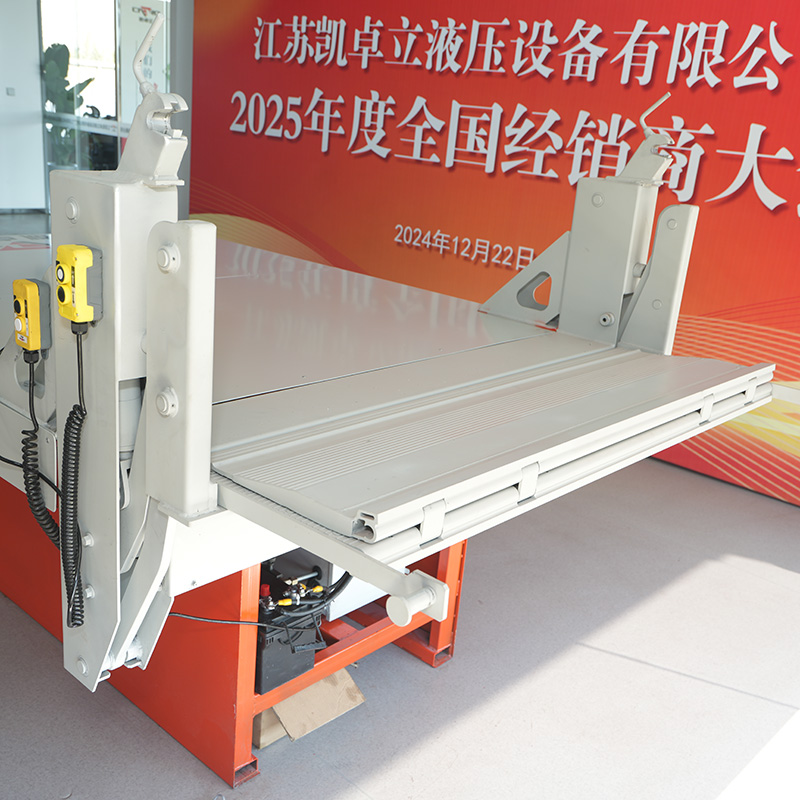

· Level Loading Platform: Maintains a horizontal position during operation, preventing cargo slippage.

· Versatile Application: Suitable for installation on small flatbed trucks, pickup trucks, and sanitation vehicles.

· Streamlined Appearance: The power system, pipelines, and circuits are integrated within the crossbeam and columns, ensuring a clean and sleek design.

Model	CD-QBPB05/110
Platform size	1480mm W×（460+380）mm H (customizable to fit your vehicle body)
Lifting capacity	500kg
Lifting Height	1100mm
Working Pressure	16MPa
Power Pack	12V / 24V（DC）
Lifting speed	80mm/s
Weight	220kg
