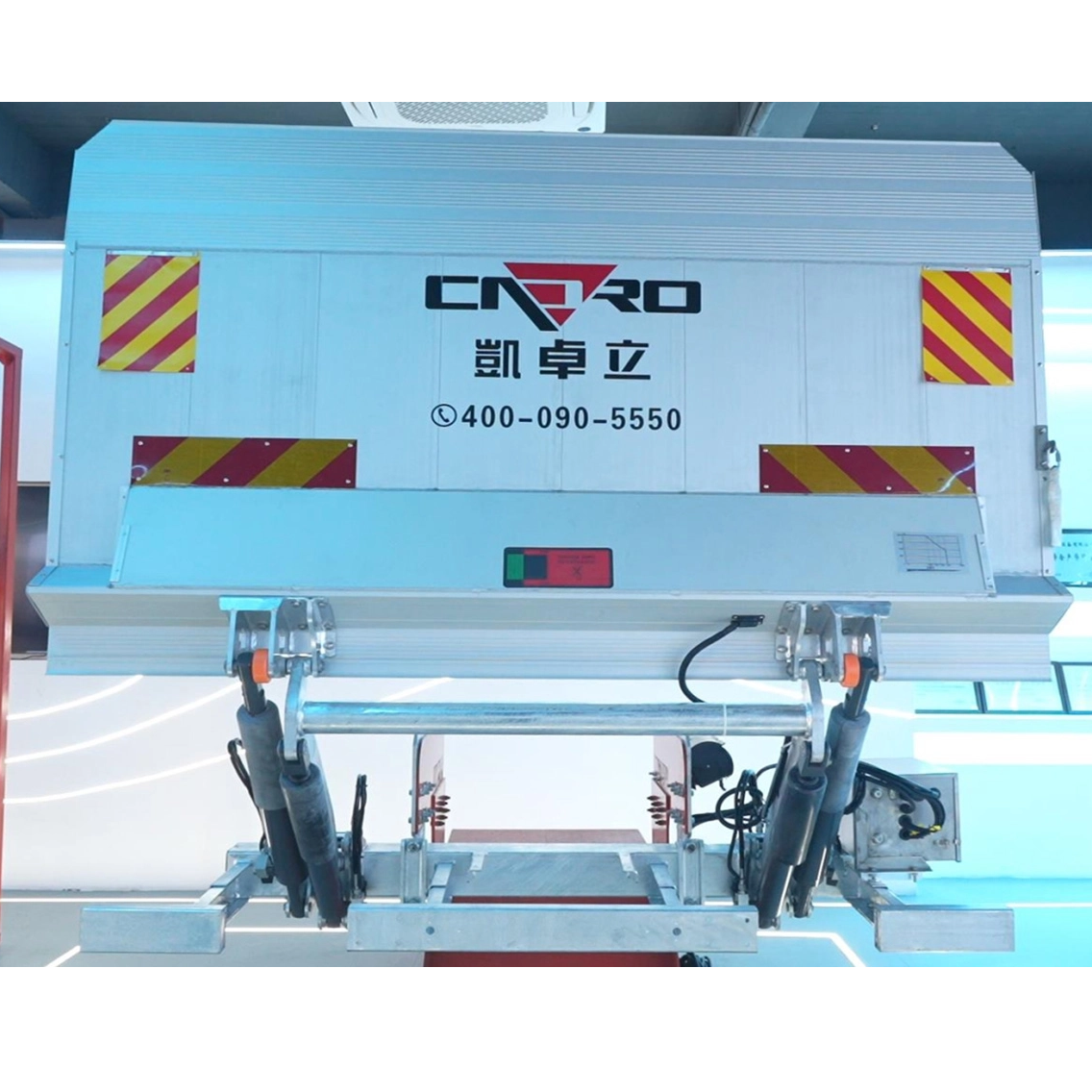

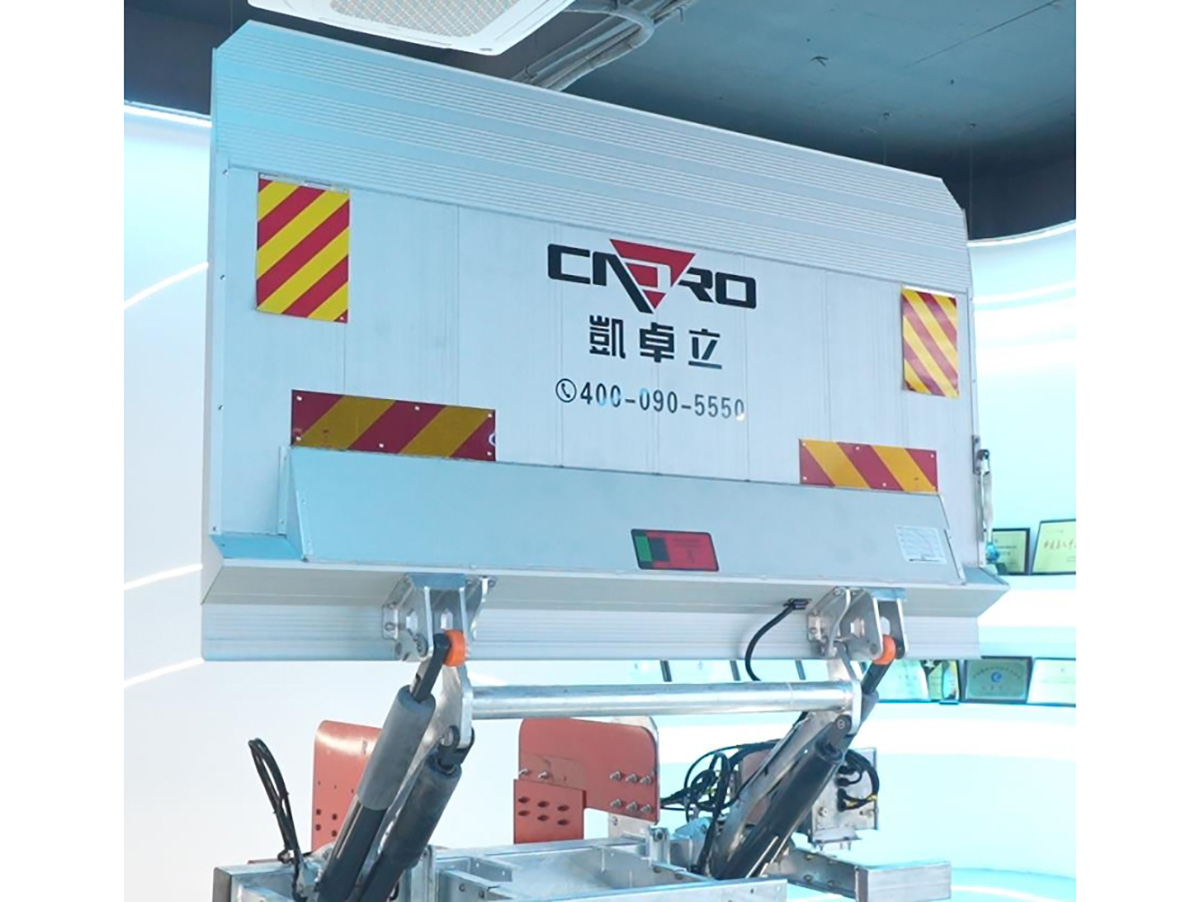

Low-Temperature Tail Lift

Features:

· Suitable for Low-Temperature and Corrosive Environments: Designed to perform reliably in harsh conditions, including low temperatures and salt corrosion.

· Smooth Tilting Mechanism: Utilizes a follow-up frame structure for gentle and consistent tilting (lowering and raising), enhancing operational efficiency.

· Electromagnetic Lock on Cylinders: Prevents cargo tipping and personal injury caused by pipe bursts or valve jams, while ensuring excellent pressure retention.

· Advanced Surface Treatment: Features hot-dip galvanizing for the tail lift, zinc-nickel alloy plating for all pipe joints and pins, and a stainless steel fuel tank, significantly improving corrosion resistance.

· Low-Temperature Configuration: Equipped with cylinders, oil tubes, and cables designed to withstand extreme cold, enabling operation in environments as low as -40°C.

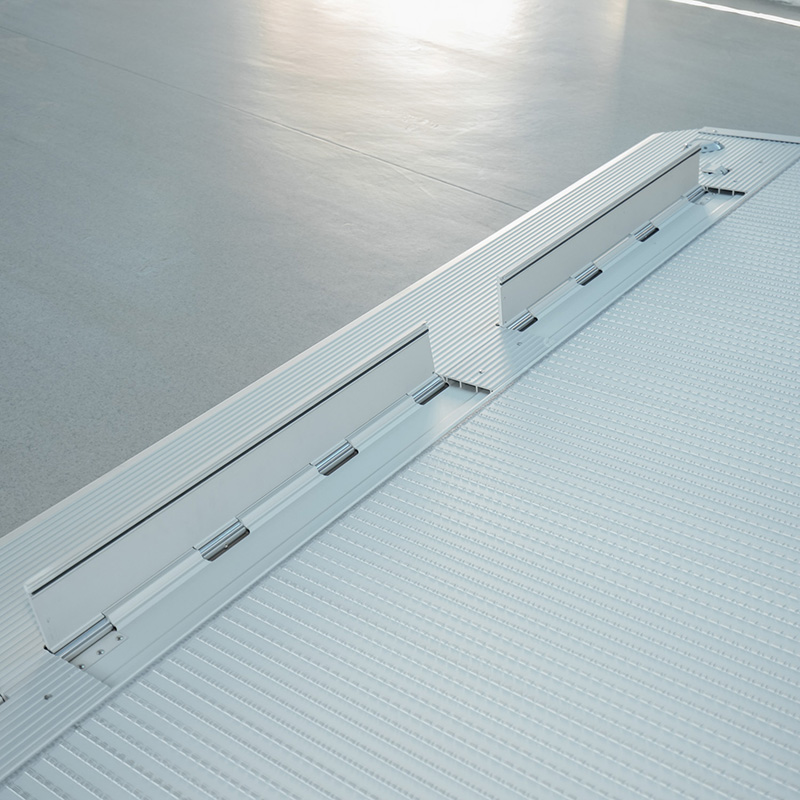

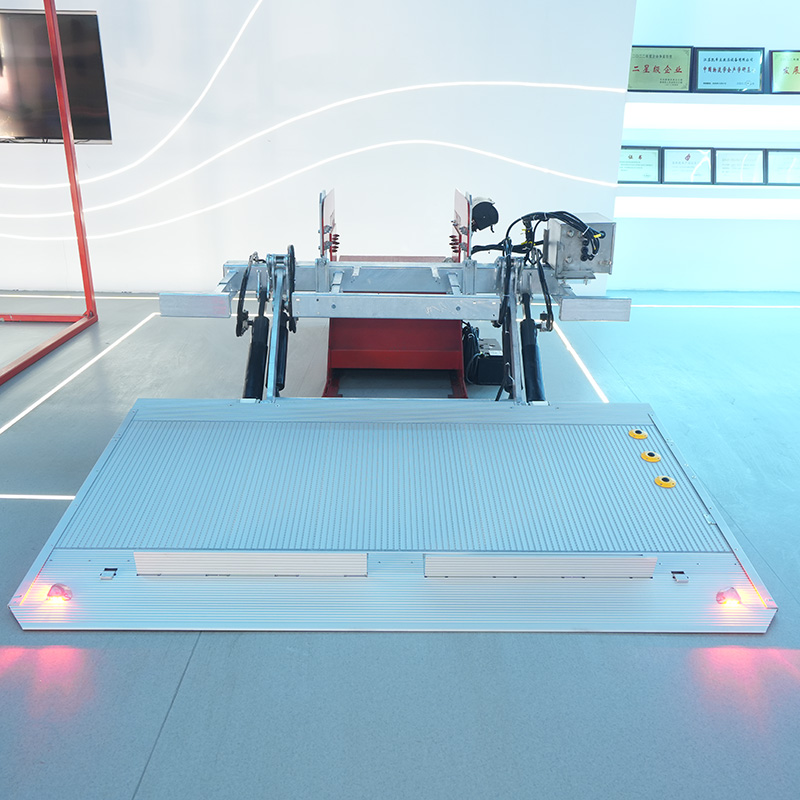

· Anti-Slip Aluminum Platform: Features vertical splicing and embossed texture for enhanced anti-slip performance, ensuring safer operations.

This product combines advanced engineering, robust safety features, and adaptability to deliver reliable performance in the most demanding conditions.

Operating Temperature	-40℃
Salt Spray Resistance	Structural Components: 700 hours Other Components: 96 hours

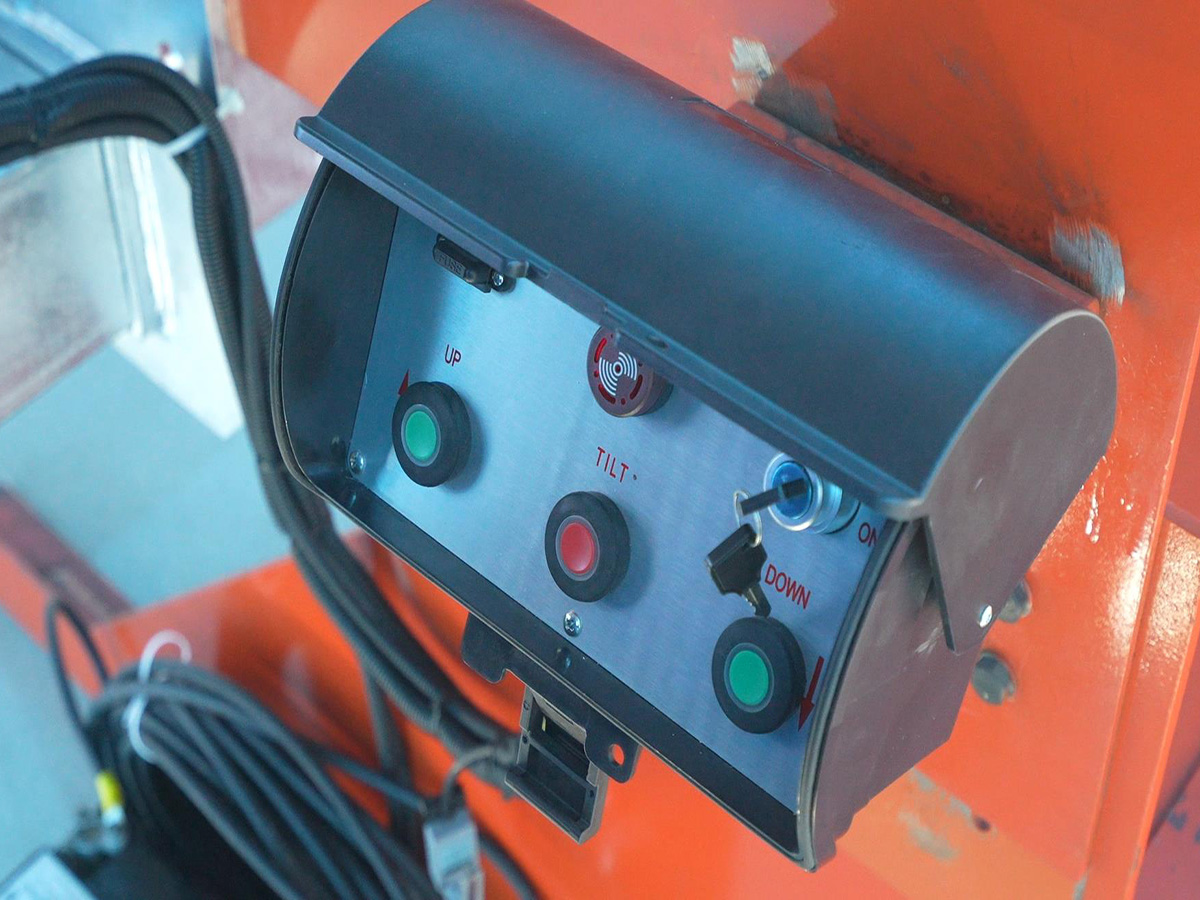

Control Methods	Control Box / Wireless Remote / Foot Pedal Switch

Customization Services Available:

· Choose between aluminum or steel platforms.

· Lifting capacity customizable from 300KG to 3000KG.

· Adjustable lifting height, weight capacity, and platform width to suit your vehicle’s specific requirements.

Specifications：

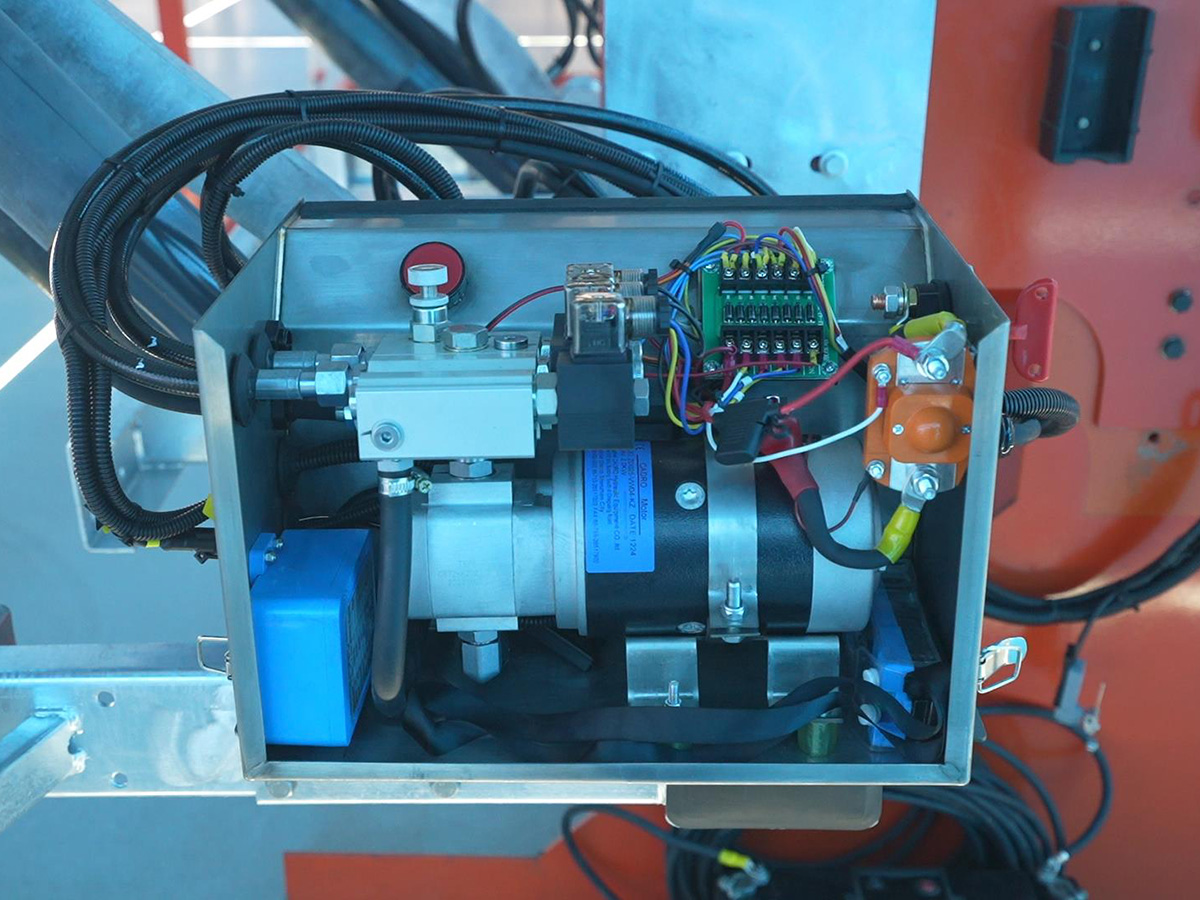

Model	Platform Size	Lifting Capacity	Power Pack	Working Pressure	Lifting speed (mm/sec)
CD-QB05/100ELJB	Wx1650（customizable）	500kg	12/24V	18Mpa	80
CD-QB10/140ELHC	Wx1650（customizable）	1000kg	12/24V	18Mpa	80
CD-QB15/130ELHC	Wx1800（customizable）	1500kg	12/24V	18Mpa	80
CD-QB15/150ELHC	Wx1800（customizable）	1500kg	12/24V	18Mpa	80
CD-QB20/150ELHC	Wx1800（customizable）	2000kg	12/24V	18Mpa	80
CD-QB20/165ELHC	Wx1800（customizable）	2000kg	12/24V	18Mpa	80
CD-QB30/152ELHC	Wx1800（customizable）	3000kg	12/24V	18Mpa	80

Dimensions Table:

Model	Platform Size	Lifting Capacity	Power Pack	Working Pressure	Lifting speed (mm/sec)
CD-QB05/100ELJB	Wx1650（customizable）	500kg	12/24V	18Mpa	80
CD-QB10/140ELHC	Wx1650（customizable）	1000kg	12/24V	18Mpa	80
CD-QB15/130ELHC	Wx1800（customizable）	1500kg	12/24V	18Mpa	80
CD-QB15/150ELHC	Wx1800（customizable）	1500kg	12/24V	18Mpa	80
CD-QB20/150ELHC	Wx1800（customizable）	2000kg	12/24V	18Mpa	80
CD-QB20/165ELHC	Wx1800（customizable）	2000kg	12/24V	18Mpa	80
CD-QB30/152ELHC	Wx1800（customizable）	3000kg	12/24V	18Mpa	80

Model	A(MM)		B(MM)		D(MM)	E(MM)	F(MM)
	MIN	MAX	MIN	MAX	MAX	MAX	MIN	MAX
CD-QB05/100ELJB	280	400	515	718	570	1000	180	800
CD-QB10/140ELHC	300	470	565	728	580	1050	180	800
CD-QB15/130ELHC	320	580	605	813	720	1300	200	880
CD-QB15/150ELHC	400	700	830	1040	850	1550	200	880
CD-QB20/150ELHC	350	595	675	845	705	1300	200	920
CD-QB20/165ELHC	400	700	830	1040	850	1550	200	960
CD-QB30/152ELHC	450	750	850	1100	850	1550	200	960
