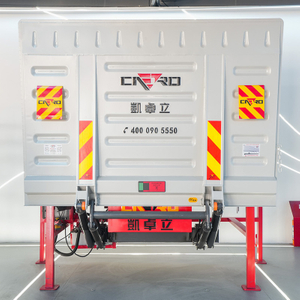

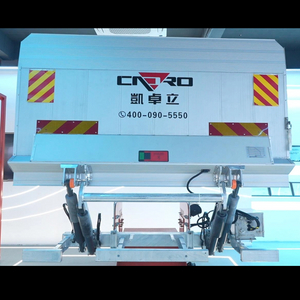

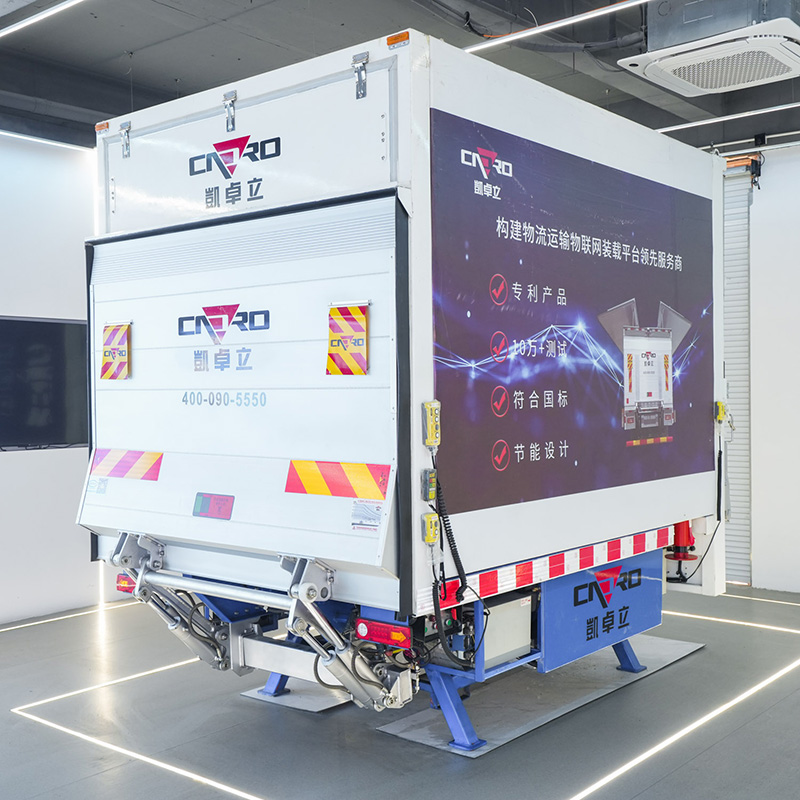

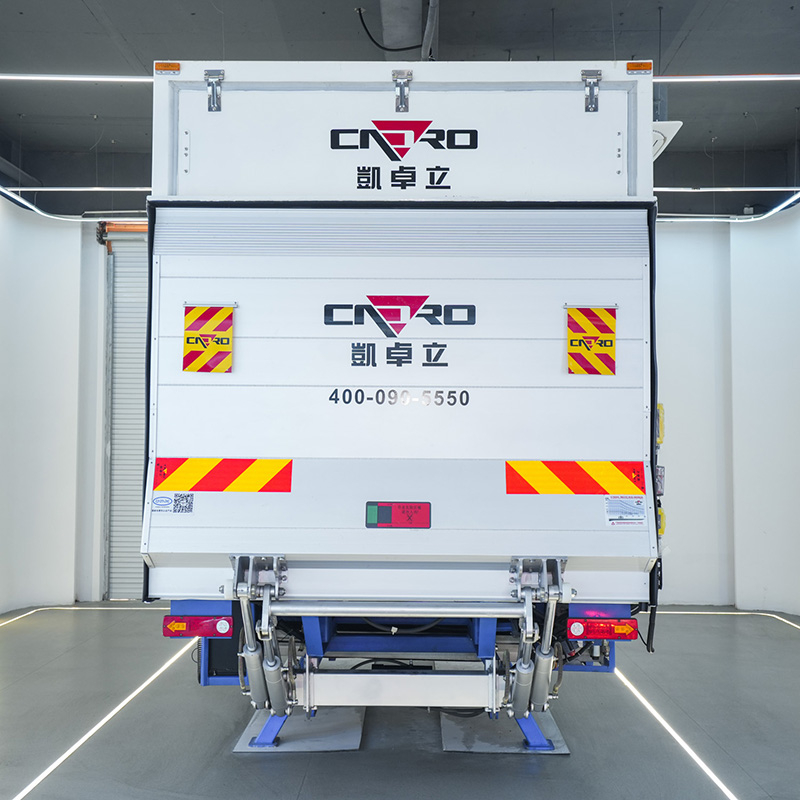

Anti-Corrosion Tail Lift

Availability:



Inquire

Model:
YT-QB10/105SL

Anti-Corrosion Tail Lift Pickup Truck Liftgate Cantilever Lift Truck Tail Lift Truck Tailgate Pickup Liftgate Cantilever Lift Gate Truck Tailgate Lift Gate Hydraulic Lift Lift Truck

Product Description

Features:

Lightweight Aluminum Platform: Designed for the 1000kg Yuntong series, the aluminum structure ensures a lightweight yet durable solution.
Eco-Friendly PIP Surface Treatment: The piston rod utilizes PIP (Post-Ion Plating) technology, replacing traditional chrome plating, offering superior wear resistance and corrosion protection.

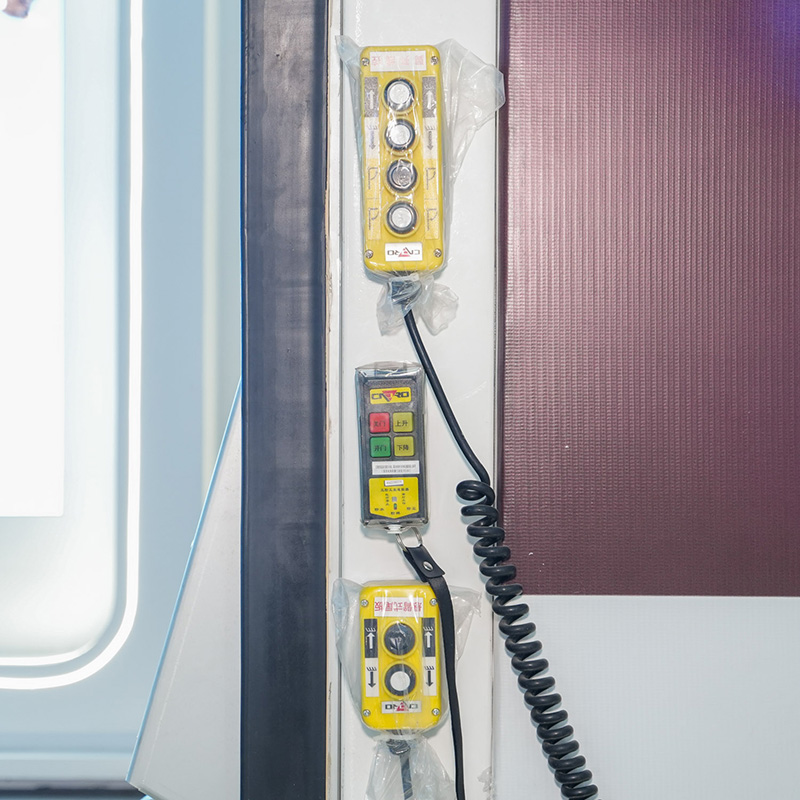

Automatic Leveling with Booster Cylinder: The tail lift achieves automatic leveling, while a handheld remote control allows one-touch operations for lifting, rising, lowering, or tilting.

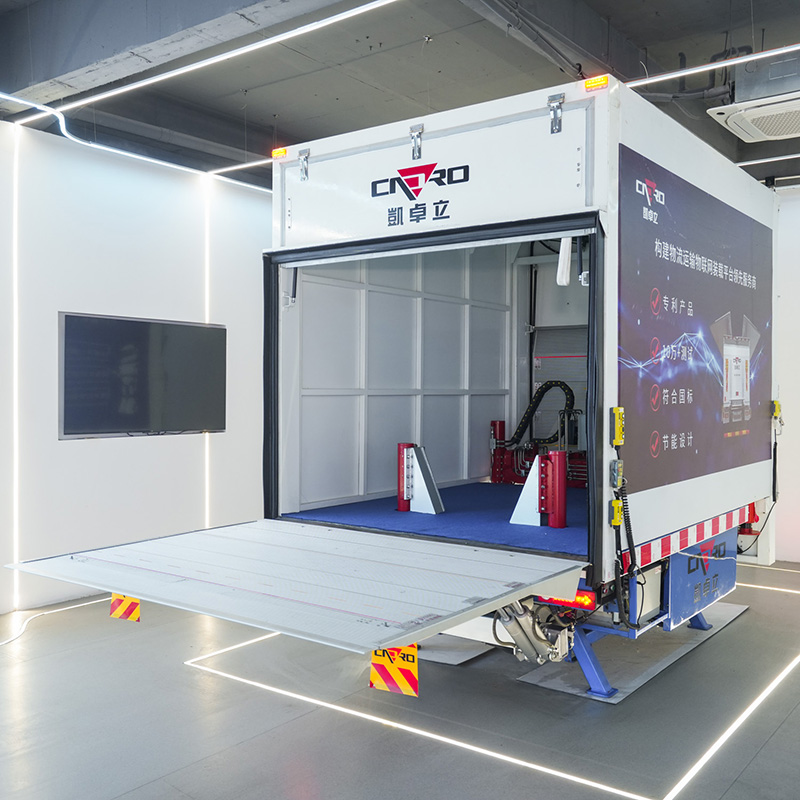

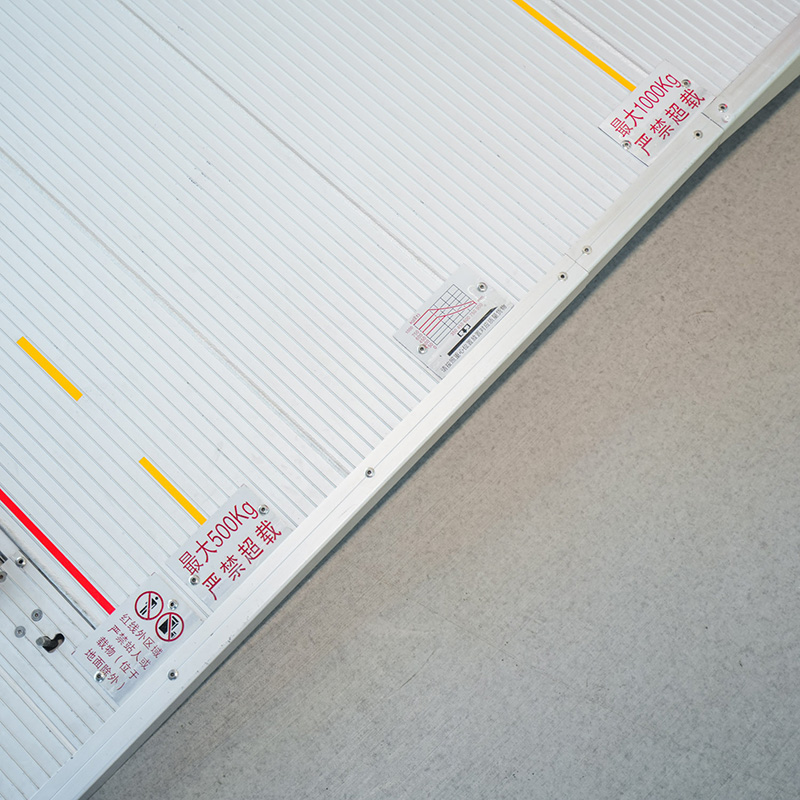

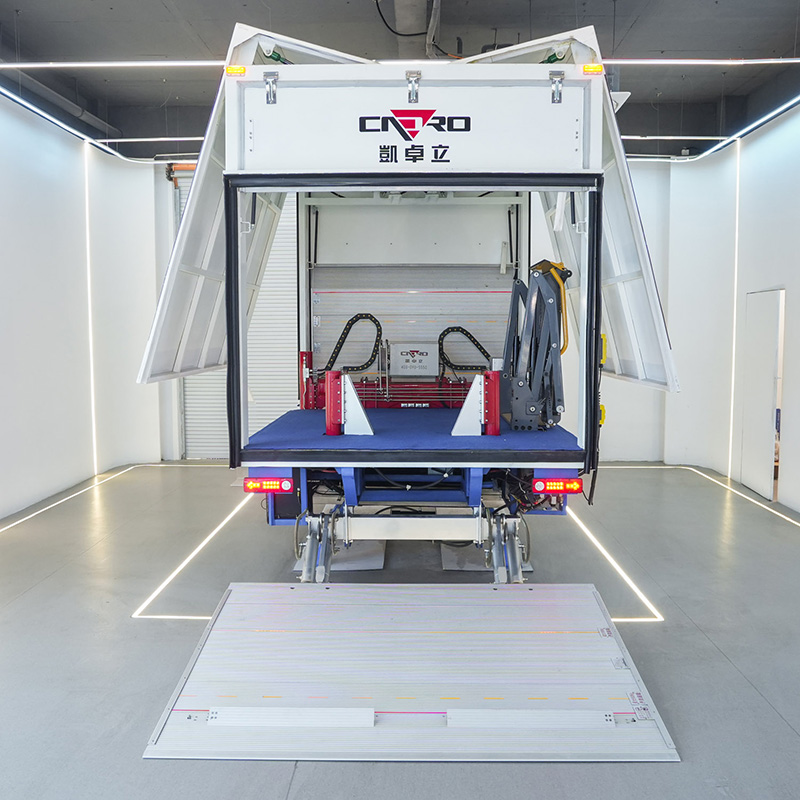

High-Strength Aluminum Loading Platform: Constructed with 30mm thick aluminum profiles, the platform delivers exceptional strength while maintaining a lightweight design.
Improved Fuel Efficiency: Reduces vehicle fuel consumption and increases cargo capacity, enhancing overall operational efficiency.
Customization Services Available: Lifting capacity customizable from 1000KG to 3000KG. Adjustable lifting height, weight capacity, and platform width to suit your vehicle’s specific requirements.

Specifications：

Model	YT-QB10/105SL
Platform size	2000mm W×1680mm H (customizable to fit your vehicle body)
Lifting capacity	1000kg
Lifting Height	1050mm
Working Pressure	16MPa
Power Pack	12V / 24V（DC）
Lifting speed	80mm/s
Weight	320kg
