​Dock Leveler VS Edge-of-Dock Leveler: What’s The Difference?

Views: 220     Author: cadrotaillift     Publish Time: 2025-07-05      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

What Are Dock Levelers?

>> Types of Dock Levelers

>> Advantages of Dock Levelers

>> Installation and Maintenance

What Are Edge-of-Dock Levelers?

>> Types of Edge-of-Dock Levelers

>> Advantages of Edge-of-Dock Levelers

>> Limitations

Key Differences Between Dock Levelers and Edge-of-Dock Levelers

When to Choose a Dock Leveler

When to Choose an Edge-of-Dock Leveler

Installation and Maintenance Considerations

Safety and Operational Efficiency

Frequently Asked Questions (FAQs)

Loading docks are critical components of warehouses and distribution centers, facilitating the smooth transfer of goods between trucks and storage areas. To bridge the gap between the dock and truck trailers, specialized equipment known as dock levelers and edge-of-dock levelers are used. While these devices serve the same fundamental purpose—creating a safe and efficient transition—they differ significantly in design, functionality, and ideal applications. This article explores the differences between dock levelers and edge-of-dock levelers, helping warehouse operators make informed decisions based on their operational needs.

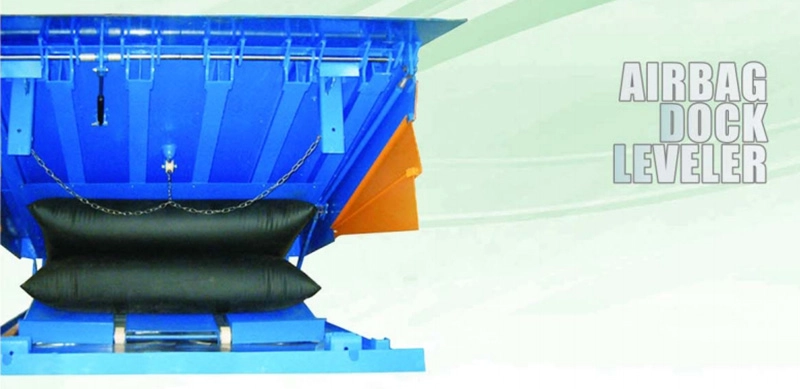

Dock Leveler3

What Are Dock Levelers?

Dock levelers, often referred to as pit levelers, are mechanical or hydraulic platforms installed within a recessed pit in the dock floor. When a truck backs into the dock, the leveler is raised and its lip extends to bridge the dock edge and the trailer bed, allowing forklifts and other equipment to move smoothly across.

Types of Dock Levelers

Dock levelers come in several types based on their operation:

- Mechanical Dock Levelers: These use a spring-loaded system where the operator pulls a chain to release the lock, allowing the leveler to pivot and extend its lip. The operator then manually lowers the leveler onto the trailer bed. Mechanical levelers are cost-effective but require physical effort and are slower to operate.

- Hydraulic and Air-Powered Dock Levelers: These models use hydraulics or compressed air to raise and lower the leveler and extend the lip at the push of a button, improving efficiency and reducing operator fatigue. They are well-suited for high-volume loading docks.

Advantages of Dock Levelers

- Wide Operating Range: Dock levelers typically have an operating range of 12 inches above and 12 inches below dock level, accommodating a variety of truck and trailer heights.

- Versatility: They can handle a broad spectrum of dock heights and trailer configurations, making them ideal for facilities servicing diverse fleets.

- Safety and Integration: Dock levelers often integrate with dock communication and safety systems such as truck restraints and dock lights, enhancing operational safety.

- Smooth Transition: Their design provides a smoother transition for forklifts, reducing wear and tear on equipment.

Installation and Maintenance

Dock levelers require a dock pit for installation, which can involve significant construction costs if not already present. Maintenance varies by type; mechanical levelers have fewer parts but require manual operation, while hydraulic systems need regular checks for fluid and components.

What Are Edge-of-Dock Levelers?

Edge-of-dock (EOD) levelers are mounted directly onto the face of the dock rather than recessed into a pit. They function similarly by extending a lip to bridge the dock and trailer, but their design and operational range differ.

Types of Edge-of-Dock Levelers

- Mechanical Edge-of-Dock Levelers: Operated by a lever or spring mechanism, these are simpler and less expensive but have limited vertical range.

- Hydraulic Edge-of-Dock Levelers: These use hydraulics for easier and faster operation, controlled by buttons.

Advantages of Edge-of-Dock Levelers

- Simpler Installation: Because they mount to the dock face, edge-of-dock levelers avoid the need for costly dock pit construction or modifications.

- Lower Cost: Generally, they have a smaller upfront investment and reduced installation expenses.

- Compact Design: Ideal for facilities with limited space around the dock.

- Suitable for Uniform Heights: Best for operations servicing trucks with minimal height variation, such as captive fleets.

Limitations

- Limited Operating Range: Typically, edge-of-dock levelers operate within 5 inches above and 5 inches below dock level, restricting their use to docks and trailers with minimal height differences.

- Less Smooth Transition: The transition can be harsher on forklifts due to the design, potentially increasing equipment wear.

- Lower Load Capacity: Usually designed for lighter loads compared to dock levelers.

Key Differences Between Dock Levelers and Edge-of-Dock Levelers

Feature Dock Levelers Edge-of-Dock Levelers
Mounting Location Installed within dock pit Mounted directly on dock face
Operating Range Approximately ±12 inches Approximately ±5 inches
Installation Cost Higher due to pit construction Lower, no pit required
Load Capacity Higher, suitable for heavy loads Generally lower, for lighter loads
Suitability for Varying Heights Excellent for diverse truck heights Best for minimal height variation
Transition Smoothness Smoother, less impact on equipment Harsher transition, more wear
Operational Types Mechanical, hydraulic, air-powered Mechanical, hydraulic
Integration with Safety Systems More options available Limited integration options
Space Requirements Requires dock pit space Compact, suitable for tight spaces

When to Choose a Dock Leveler

Dock levelers are the preferred choice when your warehouse:

- Services a wide variety of truck and trailer sizes with significant height differences.

- Handles heavy loads requiring robust equipment.

- Needs smooth transitions to reduce forklift and cargo damage.

- Wants to integrate with advanced dock safety and communication systems.

- Has the infrastructure or budget to accommodate dock pit construction.

When to Choose an Edge-of-Dock Leveler

Edge-of-dock levelers are ideal if your facility:

- Deals with uniform or minimal variation in trailer heights.

- Has limited space or cannot accommodate dock pits.

- Requires a lower-cost, easier-to-install solution.

- Handles lighter loads and less frequent dock activity.

- Operates a captive fleet or trucks with standardized bed heights.

Installation and Maintenance Considerations

- Dock Levelers: Installation involves creating or utilizing a dock pit, which can be costly and time-consuming. Maintenance varies by type; mechanical systems require manual effort and periodic inspections, while hydraulic systems need fluid checks and component servicing.

- Edge-of-Dock Levelers: Easier and faster to install since they mount on the dock face. Maintenance is generally simpler, but the limited operating range requires careful matching to truck heights to avoid operational issues.

Safety and Operational Efficiency

Both dock levelers and edge-of-dock levelers enhance safety by creating a stable bridge between dock and trailer, reducing the risk of accidents involving forklifts or personnel. However, dock levelers generally offer better safety integration options and a smoother transition, which is critical in high-volume or heavy-load environments.

Frequently Asked Questions (FAQs)

1. What is the main operational difference between dock levelers and edge-of-dock levelers?

Dock levelers have a wider operating range (±12 inches) and are installed in a dock pit, while edge-of-dock levelers have a smaller operating range (±5 inches) and mount directly on the dock face.

2. Which leveler type is more cost-effective?

Edge-of-dock levelers are generally less expensive to purchase and install because they do not require dock pit construction.

3. Can edge-of-dock levelers handle heavy loads?

They are typically designed for lighter loads; for heavy-duty operations, dock levelers are more suitable.

4. Are dock levelers better for safety integration?

Yes, dock levelers offer more options for integrating safety systems like dock lights and truck restraints.

5. How do I decide which leveler is right for my warehouse?

Consider factors such as truck height variability, load weight, dock infrastructure, budget, and frequency of dock use. Consulting with a dock equipment expert can help tailor the best solution.

Dock Leveler2
