Efficient material handling and loading solutions are crucial in transportation and logistics industries. Tail lifts simplify the cumbersome process of loading and unloading goods, ensuring safety and operational efficacy. Among various types, Column tail lifts and Slider tail lifts are two popular options. This article explores their key differences, strengths, limitations, and suitability to aid you in choosing the optimal tail lift per your loading needs.
Tail lifts are mechanical devices attached to the rear of trucks, vans, or utes, allowing goods to be raised or lowered during loading and unloading. They prevent manual lifting injuries and speed up operations. Common types include cantilever, folding, tuck-under, and column tail lifts. Each type differs in design, hydraulic mechanism, lifting capacity, and ideal usage scenarios.
Column tail lifts feature two vertical columns positioned at the vehicle's rear, which lift a platform straight up and down. The platform stays parallel to the vehicle during operation, moving vertically without tilting or sliding. This design allows the platform to lift loads slightly higher than the truck deck – a distinct advantage when working with vehicles having mezzanine decks or multi-level compartments.
- Suitable for Small Vehicles: Column lifts are commonly fitted on light commercial vehicles such as small trucks or utes.
- Cost-Effective: They are generally cheaper to purchase and install compared to slider or cantilever tail lifts.
- Quick Cycle Time: The vertical lifting mechanism speeds up the loading/unloading process since there is no need for complex unfolding.
- Higher Lift Than Deck Height: This capability enables usage in specialized applications, such as loading race cars on mezzanine decks.
- Lower Lifting Capacity: Typically limited to around 750 kg, restricting their use to lighter loads.
- Non-Tilting Platform: The platform opens to 90 degrees only and cannot angle down to the ground, making loading unevenly surfaced areas challenging.
- Shallow Platform: To maintain structural integrity and comply with capacity limits, the platform depth is limited.

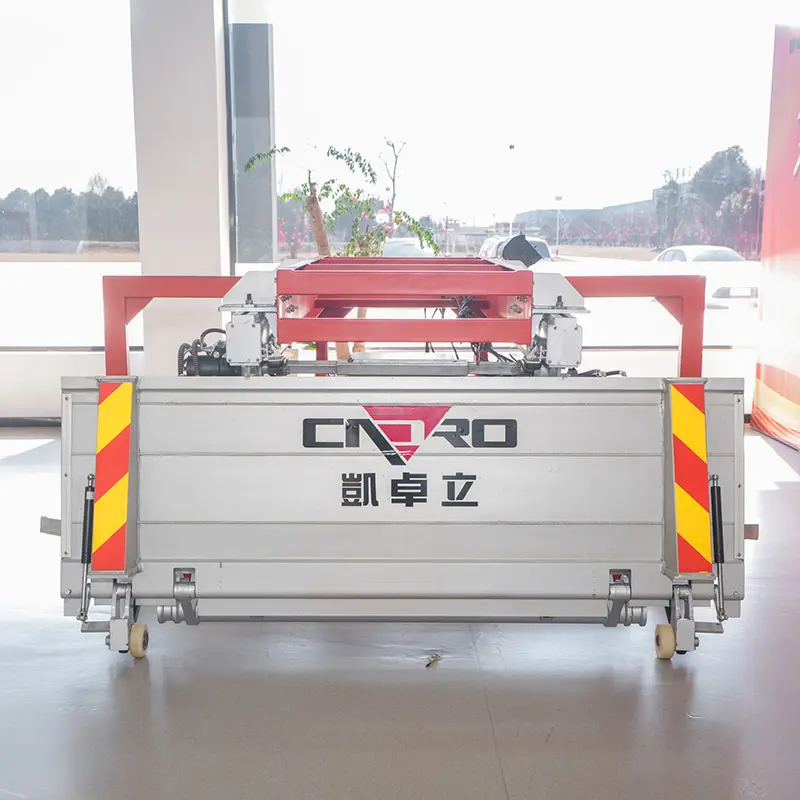

Slider tail lifts, often classified under folding tail lifts, have platforms that slide horizontally underneath the vehicle when stored. When deployed, the platform slides out from beneath and then lowers to ground level. This slide and fold operation provides a compact design that clears the doorway when not in use.
- High Load Capacity: Slider lifts generally accommodate heavier loads, ranging from 1500 kg up to 2000 kg or more, making them ideal for industrial goods and palletized cargo.
- Space Saving: The platform tucks under the vehicle, keeping the rear doors accessible and unobstructed, ideal for dock loading operations.
- Bridge Plate Functionality: Can effectively serve as a bridge between dock and vehicle, facilitating forklift use when equipped with appropriate locks.
- Reduced Fuel Penalty: Being lighter than some cantilever lifts, slider lifts contribute to preserving vehicle payload capacity and fuel efficiency.
- Manual Handling Required: Drivers must manually unfold the lift, which increases operational time and effort.
- Longer Deployment Time: The two-step unfolding and lowering process is slower than column lifts.
- Potential Ground Drag: When folded, the lift may extend below the vehicle floor, risking scraping on steep inclines or rough terrain.
- Limited Bridge Plate Load: Without specific locks, their use as a bridge plate may have restrictions for heavier forklifts.
| Feature | Column Tail Lift | Slider Tail Lift |
|---|---|---|
| Typical Load Capacity | Up to around 750 kg | 1500 kg to 2000 kg |
| Vehicle Suitability | Small trucks, utes, light commercial vehicles | Medium to heavy trucks, vans |
| Lifting Mechanism | Vertical lift via dual columns | Sliding and folding platform under vehicle |
| Platform Movement | Fixed vertical, no tilt | Slides out and folds down |
| Platform Size | Limited depth due to capacity | Larger to accommodate pallets and heavy goods |
| Cycle Time (Deployment) | Fast, quick cycle | Slower, requires manual unfolding |
| Cost | Generally lower cost | Higher initial cost |
| Dock Loading Compatibility | Less suitable due to fixed platform | Excellent for dock loading, doors fully accessible |
| Physical Effort | Low | Moderate (manual handling needed) |
| Bridge Plate Use | Limited | Can serve as bridge plate with locks |
| Ground Clearance/Obstruction | Higher clearance, platform doesn't obstruct | May drag on rough or steep ground |
- Light Loads (<750 kg): Column tail lifts are efficient and economical options especially when load types are non-palletized or relatively small.
- Heavy Loads (1500 kg+): Slider lifts offer the high capacity required for pallets, crates, or heavy industrial items.
- Small Vehicles: Column lifts are tailored for smaller trucks and utes, fitting well in limited spaces.
- Large Vehicles: Slider lifts are commonly integrated into medium rigid and heavy rigid trucks, where space allows for platform sliding under the vehicle.
- Dock Loading: Slider lifts excel with their ability to clear the doorway and permit full use of docks without obstruction.
- Uneven Ground: Column lifts, lacking tilting, require relatively flat surfaces for safe operation.
- Column lifts provide a low-cost, quick deployment solution for lighter operational needs.
- Slider lifts require higher investment but offer increased capacity and versatility.
- Column tail lifts offer quick cycles with minimal manual handling, reducing operational time and injury risk.
- Slider lifts, while slower and requiring manual setup, provide broader usage scenarios and load security.
The robustness of the hydraulic systems in both lift types directly affects performance and longevity. Well-maintained hydraulic components ensure smooth operation and load stability, thereby enhancing workplace safety.
Anti-slip surfaces and suitable platform width are critical. Column lifts typically have narrower platforms whereas slider lifts offer wider decks suitable for palletized goods.
Operators must undergo specific tail lift training to mitigate risks such as crush injuries, falls, and load instability, regardless of tail lift type.
Q1: Can a column tail lift handle palletized goods?
A1: Usually no. Column lifts have limited platform size and capacity, making them unsuitable for heavy or palletized loads.
Q2: Are slider tail lifts difficult to maintain?
A2: They require regular hydraulic and mechanical maintenance, but their design is robust and reliable when properly serviced.
Q3: Which tail lift offers faster loading times?
A3: Column tail lifts generally deploy faster due to simpler vertical lifting with no unfolding needed.
Q4: Can slider tail lifts be used as ramps for forklifts?
A4: Yes, with proper forklift locks installed, slider lifts can function as bridge plates, facilitating forklift access.
Q5: Is it possible to retrofit a slider lift on a small vehicle?
A5: It is less common due to space and weight constraints. Column tail lifts are preferred for smaller vehicles.
If you have any more questions about tail lifts or need assistance choosing the right type for your operations, feel free to ask.
