Installing an air bag dock leveler is a crucial task for ensuring the safety and efficiency of loading and unloading operations in warehouses and distribution centers. This guide will provide you with a comprehensive, step-by-step approach to installing an air bag dock leveler safely. We will cover everything from preparation to final checks, ensuring that you have all the information you need to complete the installation successfully.

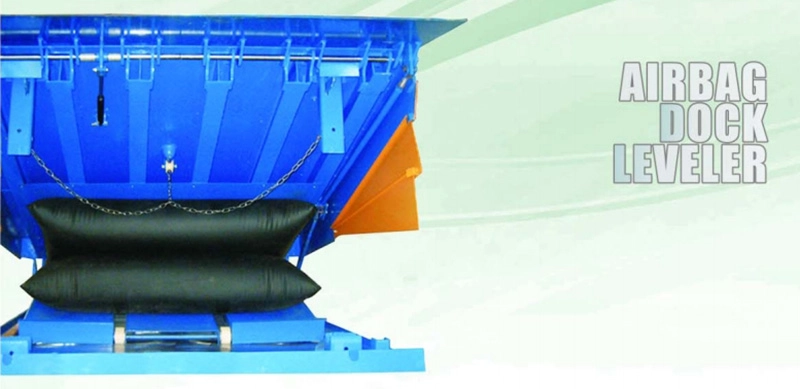

An air bag dock leveler is a type of loading dock equipment that uses inflatable air bags to raise and lower the platform. This allows for smooth transitions between the dock and the trailer, accommodating various heights and ensuring safe loading and unloading of goods. The air bag system provides flexibility and can handle different trailer heights, making it a popular choice in many facilities.
1. Safety: Reduces the risk of accidents during loading and unloading.
2. Efficiency: Speeds up the loading process by providing a smooth transition.
3. Versatility: Can accommodate various trailer heights and types.
4. Durability: Designed to withstand heavy use and harsh conditions.
Before starting the installation, gather the following tools and materials:
- Air bag dock leveler unit
- Concrete anchors
- Wrenches and sockets
- Level
- Measuring tape
- Safety goggles
- Gloves
- Drill
- Air compressor (if required)
Safety should always be your top priority. Follow these precautions:
- Wear appropriate personal protective equipment (PPE), including gloves and safety goggles.
- Ensure the work area is clear of obstacles and hazards.
- If working with heavy equipment, ensure you have assistance to avoid injury.
Conduct a thorough assessment of the installation site:
- Check the condition of the dock and surrounding area.
- Ensure there is adequate space for the leveler and any necessary equipment.
- Verify that the electrical and air supply connections are accessible.
1. Measure the Dock Height: Use a measuring tape to determine the height of the dock from the ground.
2. Mark the Installation Area: Mark the area where the leveler will be installed, ensuring it aligns with the dock edge.
3. Position the Leveler: Carefully position the air bag dock leveler in the marked area, ensuring it is centered and level.
1. Drill Holes for Anchors: Using a drill, create holes in the concrete for the anchors. Ensure the holes are deep enough to secure the leveler firmly.
2. Insert Concrete Anchors: Place the concrete anchors into the drilled holes, ensuring they are flush with the surface.
3. Secure the Leveler: Use bolts to secure the leveler to the concrete anchors. Tighten them using a wrench, ensuring a snug fit.
1. Locate the Air Supply Connection: Identify the air supply connection point on the leveler.
2. Connect the Air Hose: Attach the air hose from the compressor to the leveler's air supply connection. Ensure it is secure to prevent leaks.
3. Test the Air Supply: Turn on the air compressor and check for any leaks in the connection. If leaks are detected, tighten the connection or replace the hose as necessary.
1. Identify Electrical Requirements: Check the leveler's specifications for electrical requirements.
2. Connect the Power Supply: If the leveler requires electrical power, connect it to the power supply according to the manufacturer's instructions.
3. Test the Electrical System: Turn on the power supply and test the leveler's operation to ensure it functions correctly.
1. Check Leveling: Use a level to ensure the dock leveler is perfectly horizontal. Adjust as necessary by loosening the bolts and repositioning the leveler.
2. Test the Operation: Operate the leveler several times to ensure it raises and lowers smoothly. Listen for any unusual noises that may indicate a problem.
3. Inspect for Safety: Conduct a final inspection to ensure all connections are secure, and there are no hazards in the area.
Conduct regular inspections of the air bag dock leveler to ensure it remains in good working condition. Check for:
- Signs of wear or damage to the air bags.
- Loose connections or bolts.
- Proper operation of the air supply and electrical systems.
Keep the leveler clean to prevent debris from interfering with its operation. Regularly clean the surface and inspect for any buildup that could cause issues.
Check the air bags for leaks or damage. If you notice any issues, replace the air bags promptly to maintain safety and efficiency.
If the leveler does not operate, check the following:
- Ensure the air supply is connected and functioning.
- Verify that the electrical connections are secure.
- Inspect for any blockages or mechanical issues.
If the leveler is not leveling correctly, check:
- The installation alignment; it may need to be repositioned.
- The air supply pressure; ensure it meets the manufacturer's specifications.
If you detect air leaks, inspect all connections and hoses for damage. Replace any faulty components to ensure proper operation.
Installing an air bag dock leveler is a straightforward process when approached methodically. By following this step-by-step guide, you can ensure a safe and efficient installation that enhances your loading dock operations. Regular maintenance and inspections will help prolong the life of your leveler and maintain safety standards in your facility.
1. What is the average lifespan of an air bag dock leveler?
- The average lifespan can vary, but with proper maintenance, they can last 10-15 years.
2. Can I install an air bag dock leveler myself?
- Yes, as long as you follow safety guidelines and the manufacturer's instructions.
3. What maintenance is required for air bag dock levelers?
- Regular inspections, cleaning, and checking for air leaks are essential for maintenance.
4. Are air bag dock levelers suitable for all types of trailers?
- Yes, they are designed to accommodate various trailer heights and types.
5. What should I do if my leveler is not functioning properly?
- Check the air supply and electrical connections, and inspect for any mechanical issues.
