Wheelchair lifts are critical accessibility solutions designed to accommodate individuals with mobility challenges. Their dimensions, particularly width, play a pivotal role in ensuring safety, usability, and compliance with regulations. This article explores the factors influencing wheelchair lift width, standard dimensions across lift types, regulatory requirements, and practical considerations for installation.
---
Wheelchair lift widths vary depending on their application, design, and intended use. Below are common categories and their typical dimensions.
- Residential Lifts:

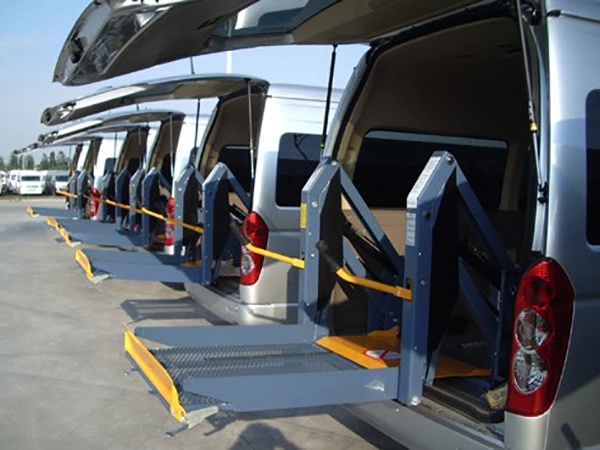

- Platform widths range from 27–34 inches (68–86 cm), with compact models like vehicle-mounted lifts often at the narrower end.
- Example: Under-vehicle lifts for minivans may have platforms as narrow as 27 inches but extend to 56.75 inches in length for larger mobility devices[2][4].
- Commercial Lifts:
- Public and commercial lifts prioritize wider platforms, often 34–40 inches (86–102 cm), to accommodate diverse wheelchair sizes and ensure maneuverability.
- The BraunAbility Century 2 Commercial Lift, for instance, provides a 33-inch usable passageway width on a 51-inch-long platform[6].
1. Wheelchair Dimensions:
- Standard wheelchairs average 24–27 inches in width, but heavy-duty or powered models may exceed 30 inches.
- Lift platforms must provide 3–6 inches of clearance on each side for safe operation.
2. Intended Use:
- Vehicle-mounted lifts prioritize space efficiency, whereas fixed commercial lifts emphasize accessibility compliance.
3. Regulatory Requirements:
- Building codes like the ADA (Americans with Disabilities Act) mandate minimum platform widths for public installations.
---
Compliance with regional regulations ensures lifts meet safety and accessibility benchmarks.
- Minimum Platform Width: 36 inches (91 cm) for public lifts, with a 51-inch minimum length to accommodate wheelchair turning[6].
- Clear Floor Space: A 30x48-inch area must be available adjacent to the lift for approach and transfer[5].
- Maneuvering Space: A 1500x1500 mm area is required in front of the lift for wheelchair rotation[3].
- Platform Size: Combined-use lifts (wheelchair + standing passengers) should be at least 2000 mm wide x 1400 mm deep[3].
---
- Standard Cab Size: 36x54 inches (91x137 cm), expandable to 18 sq. ft. for custom applications[5].
- Weight Capacity: Up to 750 lbs, suitable for powered wheelchairs[4][5].
- Common Widths: 27–30.5 inches (69–77 cm), with lengths up to 60 inches for curved staircases[2].
- Gradient Range: Operates on slopes from 15° to 45°, requiring narrower platforms to fit stairwells[2].
- Platform Width: 27–31 inches (69–79 cm), with under-vehicle lifts like the BraunAbility UVL offering 31-inch widths[4].
- Weight Limits: Typically 350–750 lbs, depending on lift type[2][4].
---
- Doorway Alignment: Ensure lift platforms align with entry points, avoiding obstructions.
- Footprint: Measure stairwells, vehicles, or installation areas to confirm compatibility.
- Safety Features: Opt for lifts with non-skid surfaces, obstruction sensors, and emergency lowering systems[2][4].
- Adjustable Wheel Chocks: Secure wheelchairs on inclined or vehicle lifts[2].
- Expandable Platforms: Some models offer length adjustments from 34 to 56 inches[2].
---
1. What is the minimum width for a residential wheelchair lift?
Residential lifts can be as narrow as 27 inches, but 30–34 inches is recommended for comfort.
2. Do wheelchair lifts require building code approvals?
Yes, commercial lifts must comply with ADA or local accessibility laws, while residential lifts have more flexibility.
3. Can a lift accommodate a powered wheelchair?
Choose lifts with ≥750 lbs capacity and platforms wider than 36 inches for powered models[5][6].
4. How much clearance is needed beside a lift platform?
Allow ≥3 inches on each side to prevent collisions during operation.
5. Are outdoor wheelchair lifts weather-resistant?
Many commercial lifts feature protective coatings, but verify IP ratings for outdoor use[2][7].
