Dock levelers are essential equipment in loading docks, bridging the gap between a dock and a truck or trailer to facilitate smooth loading and unloading. Understanding the weight of a dock leveler is important for installation, safety, and operational efficiency. This article explores the typical weights of dock levelers, factors influencing their weight, types of dock levelers, and considerations for selecting the right dock leveler for your facility.

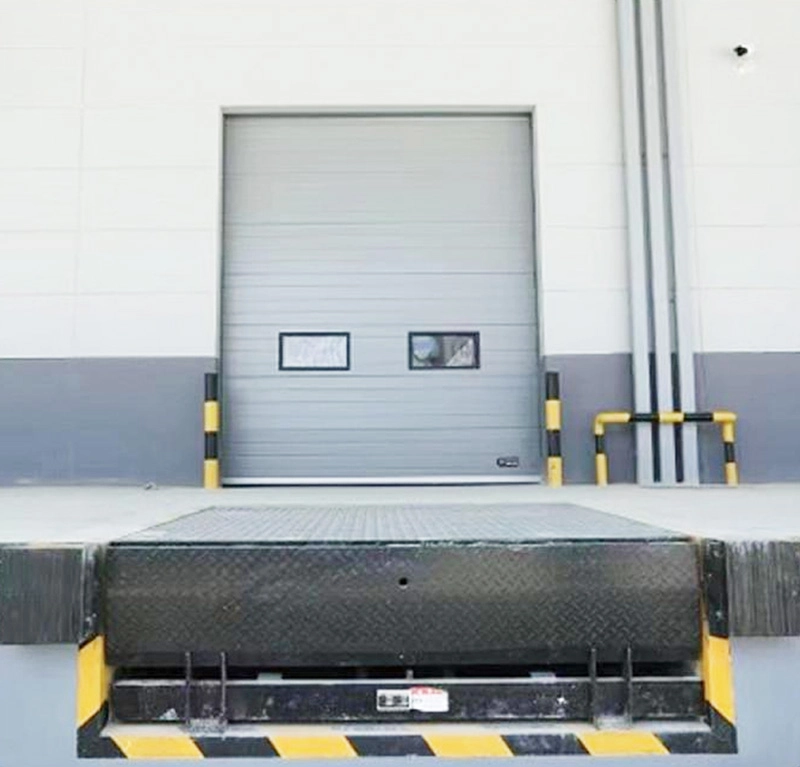

Dock Leveler4

What Is a Dock Leveler?

A dock leveler is a mechanical or hydraulic platform installed at loading docks to compensate for height differences between the dock and the vehicle bed. It ensures safe and efficient transfer of goods by providing a smooth transition for forklifts and other material handling equipment.

Typical Weight Range of Dock Levelers

General Weight Estimates

The weight of dock levelers varies widely depending on their size, capacity, and type. On average, dock levelers weigh between 1,000 to 3,000 pounds (450 to 1,360 kilograms). However, heavy-duty dock levelers designed for high-capacity use can weigh significantly more.

Weight by Capacity

Dock levelers are rated by their load capacity, which typically ranges from 25,000 to 80,000 pounds. The weight of the dock leveler itself correlates with its capacity rating:

- Light to Medium Capacity (25,000 to 35,000 lbs): These dock levelers usually weigh around 1,500 to 2,500 pounds.

- Heavy Capacity (40,000 to 50,000 lbs and above): These can weigh upwards of 3,000 pounds or more due to reinforced construction and thicker materials.

For example, mechanical dock levelers with a 30,000 to 40,000-pound capacity often weigh between 2,000 and 3,000 pounds, while heavy-duty hydraulic dock levelers designed for 40,000 to 50,000 pounds capacity have thicker decks and lips, increasing their weight accordingly.

Factors Influencing Dock Leveler Weight

Size and Dimensions

Dock levelers come in various sizes, commonly ranging from 6 feet by 6 feet to 7 feet by 10 feet. Larger dimensions require more steel and structural components, increasing the overall weight.

Material and Construction

Most dock levelers are constructed from heavy-duty steel, including diamond plate decks and steel channel understructures. The thickness of the steel used, especially in the deck and lip, directly affects the weight. For instance, lips on heavy capacity dock levelers may be 5/8 inch to 3/4 inch thick, adding to the total weight.

Type of Dock Leveler

- Mechanical Dock Levelers: These use springs or counterbalance systems and tend to be lighter than hydraulic models but still robust.

- Hydraulic Dock Levelers: Equipped with hydraulic cylinders and pumps, these levelers are heavier due to additional components.

- Air-Powered Dock Levelers: These use air bladders and can vary in weight depending on design.

Additional Features and Options

Options such as weather seals, insulation, extended lips, and bumpers add to the dock leveler's weight. For example, adding a spray foam insulated deck or galvanized finish increases the overall mass.

Types of Dock Levelers and Their Weights

Mechanical Dock Levelers

Mechanical dock levelers are popular for their simplicity and durability. They typically weigh between 1,500 and 3,000 pounds depending on size and capacity. For example, the Kelley CM Series mechanical dock leveler offers models with capacities from 30,000 to 45,000 pounds and weights in this range.

Hydraulic Dock Levelers

Hydraulic dock levelers are heavier due to their hydraulic systems. They can weigh from 2,500 pounds for smaller models to over 4,000 pounds for heavy-duty versions. Their smooth operation and ease of use justify the additional weight.

Air-Powered Dock Levelers

These levelers use compressed air for operation and have weights comparable to hydraulic models, depending on size and capacity.

Why Dock Leveler Weight Matters

Installation Considerations

Knowing the weight of a dock leveler is crucial for planning installation. The dock structure must support the leveler's weight plus the dynamic loads during operation. Heavy dock levelers require reinforced pits and foundations.

Safety and Load Capacity

The dock leveler's weight is part of its structural integrity. Heavier dock levelers generally indicate stronger construction capable of handling higher loads safely.

Maintenance and Longevity

Heavier dock levelers with robust construction tend to have longer service lives and require less frequent maintenance.

How to Determine the Right Dock Leveler Weight and Capacity

Assessing Load Requirements

Calculate the maximum weight of forklifts and loads that will cross the dock leveler. For example, a forklift weighing 8,824 pounds carrying a 2,000-pound load results in a total live load of 10,824 pounds.

Applying Dynamic Load Factors

Dynamic forces during operation increase the effective load on the dock leveler. A multiplier (commonly 2.5) is applied to the live load to determine the required static capacity. For instance, 10,824 pounds × 2.5 = 27,060 pounds, so a dock leveler with at least a 30,000-pound capacity is recommended.

Selecting the Appropriate Model

Choose a dock leveler with a capacity rating that exceeds the calculated static capacity. Consider additional factors such as frequency of use, incline degree, and environmental conditions.

Summary

Dock levelers typically weigh between 1,000 and 4,000 pounds, depending on their size, capacity, and type. Mechanical dock levelers tend to be lighter, while hydraulic and heavy-capacity models are heavier due to reinforced construction and additional components. Understanding the weight and capacity requirements is essential for safe and efficient dock operations.

---

Related Questions and Answers

Q1: What is the typical capacity range for dock levelers?

A1: Dock levelers usually have capacity ratings ranging from 25,000 to 80,000 pounds.

Q2: How does the weight of a dock leveler affect its installation?

A2: Heavier dock levelers require stronger dock structures and reinforced pits to support their weight safely.

Q3: What is the difference between static and dynamic capacity in dock levelers?

A3: Static capacity is the maximum weight the dock leveler can support when stationary, while dynamic capacity accounts for forces during movement, such as forklifts crossing the leveler.

Q4: Are hydraulic dock levelers heavier than mechanical ones?

A4: Yes, hydraulic dock levelers are generally heavier due to their hydraulic components.

Q5: Can additional features increase the weight of a dock leveler?

A5: Yes, options like weather seals, insulation, and extended lips add to the dock leveler's overall weight.

Dock Leveler3

---

Citations:

[1] https://www.pentalift.com/solutions/dock-leveler-capacity-understanding-loading-dock-capacity/

[2] https://www.bluegiant.com/Architects/Planning-and-Design/Leveler-Capacity.aspx

[3] https://chalfantusa.com/selecting-dock-leveler-capacity/

[4] https://www.beacontechnology.com/dock-leveler/hydraulic-dock-levelers/heavy-capacity-dock-leveler/

[5] https://og.mhi.org/media/members/13968/128657191776051227.pdf

[6] https://kelleydocksolutions.com/interior-equipment/dock-levelers/mechanical-dock-levelers/cm-series-mechanical-dock-leveler/

[7] https://github.com/zhanglongLee/Lee_English_Web/blob/main/english_study_web.sql

[8] https://sercodockproducts.com/assets/VSL_Leveler.pdf

[9] https://www.bluegiant.com/Files/Specifications/CSI-Specs/Dock-Levelers/11_13_00-DockLeveler-Model-H-Blue-Giant.aspx

[10] https://www.vestil.com/product.php?FID=3

---
