Column tail lifts are essential equipment in the logistics and transportation industry, designed to facilitate the loading and unloading of heavy goods from trucks and vans. This article explores the working principles, components, types, advantages, and applications of column tail lifts, providing a comprehensive understanding of their operation and benefits.

Tail Lift11

What Is a Column Tail Lift?

A column tail lift is a hydraulic lifting platform mounted at the rear of a vehicle, typically trucks or vans. It consists of a platform that moves vertically along two vertical columns or rails fixed on either side of the vehicle's rear. These lifts are designed to raise or lower heavy loads between the ground and the vehicle's cargo area, enabling safer and more efficient cargo handling.

Basic Structure and Components

The column tail lift mechanism is relatively simple yet effective. The key components include:

- Vertical Columns (Rails): These guide the platform's vertical movement and are mounted on either side of the vehicle's rear.

- Hydraulic Cylinder: Powers the lifting and lowering of the platform.

- Chains or Cables: Connected to the hydraulic cylinder, they transmit the lifting force to the platform.

- Platform: The flat surface that carries the load.

- Control System: Electric or hydraulic controls operated by the driver or operator to manage the lift's movements.

The platform is symmetrically driven by the hydraulic cylinder through chains or cables running inside the columns, ensuring minimal vibration and precise positioning at various heights[1][9].

How Does a Column Tail Lift Work?

Hydraulic Lifting Mechanism

The core of the column tail lift's operation is hydraulic power. The hydraulic cylinder, powered by a pump (usually driven by the vehicle's battery or an auxiliary power pack), extends or retracts to raise or lower the platform.

When activated, hydraulic fluid is pumped into the cylinder, causing the piston to move and pull the chains or cables attached to the platform. This action lifts the platform vertically along the columns. To lower the platform, the hydraulic fluid is released from the cylinder, allowing the piston to retract and the platform to descend smoothly[1][5].

Platform Guidance and Stability

The platform is guided by the vertical columns, which house the chains or cables. This guided system keeps the platform stable and balanced during lifting and lowering, preventing unwanted lateral movement or vibrations. The symmetrical drive system ensures the platform remains level, which is crucial when handling sensitive or uneven loads such as vehicles or livestock[1][9].

Control and Safety Features

Column tail lifts are controlled via switches or control panels, sometimes located inside the vehicle cabin or on the lift itself. Operators can raise, lower, or stop the platform at any desired height, allowing precise alignment with loading docks or ground level.

Safety mechanisms include:

- Load Limiters: Prevent lifting beyond the rated capacity.

- Fall Protection: Systems such as safety chains or mechanical locks prevent the platform from falling in case of hydraulic or cable failure.

- Position Sensors: Ensure the platform is correctly stowed when not in use.

- Emergency Stop: Allows immediate halt of operations in case of danger[4][9].

Types of Column Tail Lifts

Column tail lifts come in various designs tailored to different vehicle types and load requirements.

Standard Column Tail Lifts

These lifts have two vertical columns with a platform that moves strictly vertically. They are suitable for medium to heavy loads and are commonly used on small trucks, utility vehicles, and vans. Their simple design makes them cost-effective and reliable[6][9].

Multi-Deck Column Lifts

Some column lifts are designed with multi-level platforms to facilitate loading and unloading at different heights, such as mezzanine decks in transport vehicles. These lifts have additional safety features and more complex hydraulic and cable systems to manage the extra platform sections[4].

Specialized Column Lifts

- Railgate Tail Lifts: Similar to column lifts but often used for heavier or larger loads, with platforms moving along vertical rails.

- Hydraulic Column Tail Lifts with Tilt: Some column lifts incorporate tilting mechanisms to adjust the platform angle, although traditional column lifts do not tilt[1][11].

Advantages of Column Tail Lifts

Column tail lifts offer several benefits that make them popular in logistics and transportation:

- High Lifting Capacity: They can handle loads up to 2000 kg or more, depending on the model.

- Precise Positioning: The guided columns allow accurate alignment with docks or ground level.

- Stable and Balanced Lifting: Symmetrical drive systems reduce vibration and movement.

- Cost-Effective: Generally cheaper than cantilever or folding tail lifts.

- Quick Operation: Faster cycle times compared to some other tail lift types.

- Versatility: Suitable for various vehicles, including trucks with flatbeds, drop-sided bodies, and refrigerated vans.

- Space Efficiency: The platform folds vertically along the columns, minimizing obstruction when not in use[5][6][9].

Applications of Column Tail Lifts

Column tail lifts are widely used across multiple industries:

- Logistics and Distribution: For quick loading and unloading of parcels, pallets, and goods in delivery trucks.

- Automotive Transport: Loading cars onto transporters with mezzanine decks.

- Livestock Transport: Safely loading animals with minimal platform movement.

- Construction and Heavy Industry: Handling heavy machinery and building materials.

- Refrigerated Transport: Maintaining cold chain integrity by enabling dock-level loading without obstructing vehicle doors[5][9].

Installation and Maintenance

Column tail lifts can be installed on a variety of vehicle types without significant body modifications. They are powered by hydraulic systems connected to the vehicle's battery or an independent power pack.

Regular maintenance includes:

- Checking hydraulic fluid levels and quality.

- Inspecting chains, cables, and pulleys for wear.

- Testing safety devices and control systems.

- Lubricating moving parts to prevent corrosion and ensure smooth operation[4][5].

Limitations and Considerations

While column tail lifts have many advantages, some limitations include:

- No Tilting Capability: Unlike cantilever lifts, column lifts do not tilt, so ground surface angles must be considered to ensure safe loading.

- Load Capacity Limits: They generally support lighter loads compared to cantilever or folding tail lifts.

- Platform Size: The platform size may be limited by the vertical columns, restricting very large or bulky items.

- Vehicle Size: More common on smaller trucks and utility vehicles; larger vehicles may require different tail lift types[6].

---

Related Questions and Answers

1. What is the main difference between a column tail lift and a cantilever tail lift?

Column tail lifts raise the platform vertically along two columns without tilting, while cantilever lifts use hydraulic arms to lift and tilt the platform, allowing easier loading on uneven surfaces.

2. Can a column tail lift be used on refrigerated trucks?

Yes, column tail lifts are suitable for refrigerated trucks, especially because they allow dock-level loading without obstructing rear doors, helping maintain temperature control.

3. How is the lifting capacity of a column tail lift determined?

The capacity depends on the hydraulic cylinder size, chain or cable strength, and platform design, typically ranging up to 2000 kg for medium-sized lifts.

4. What safety features are standard on column tail lifts?

Standard features include load limiters, fall protection systems, emergency stops, and position sensors to ensure safe operation.

5. How often should a column tail lift be maintained?

Maintenance should be performed regularly, often every few months or according to manufacturer guidelines, focusing on hydraulic fluid, cables, safety devices, and lubrication.

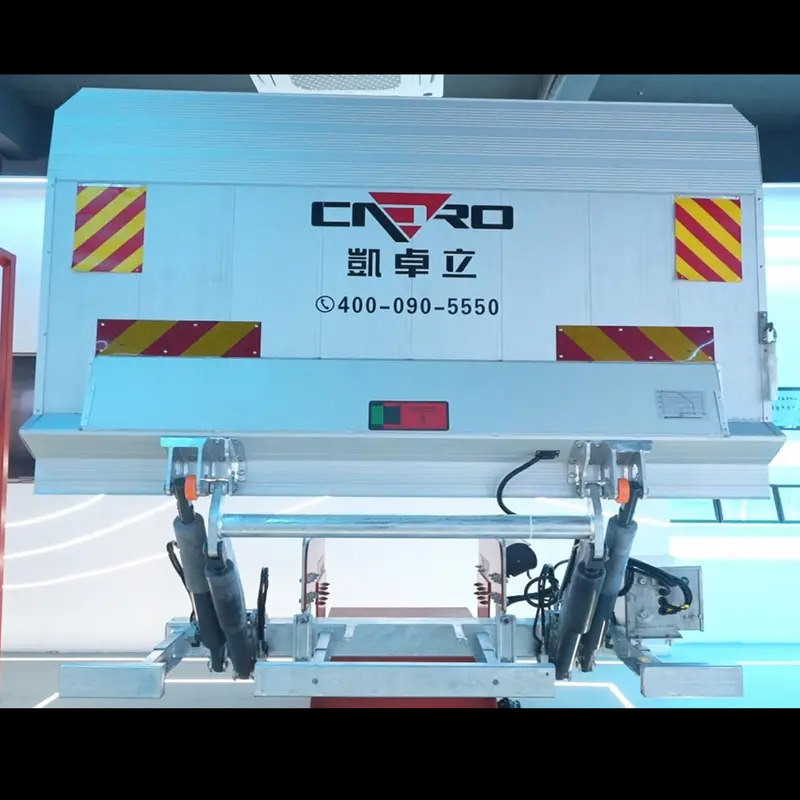

Tail Lift3

---
