When it comes to enhancing the loading and unloading efficiency of commercial vehicles, tail lifts play a crucial role. Among the various types available, folding tail lifts and fixed tail lifts (often referred to as cantilever tail lifts) are two popular solutions, each with distinct advantages and limitations. Selecting the right tail lift depends on your vehicle type, cargo handling needs, and operational environment. This article explores the differences, benefits, and drawbacks of folding and fixed tail lifts to help you make an informed decision.
A tail lift is a mechanical device attached to the rear of a vehicle that facilitates the lifting and lowering of goods between the ground and the vehicle's cargo area. Tail lifts are indispensable for trucks, vans, and other commercial vehicles that transport heavy or bulky items.
- Fixed (Cantilever) Tail Lifts: The platform folds up and down using hydraulic tilt rams and is often integrated as part of the rear door.
- Folding Tail Lifts: These come in two main varieties—*slider* (retractable) and *tuck-under* (tuck-away)—and involve a folding mechanism that allows the platform to be stored compactly under the vehicle when not in use.

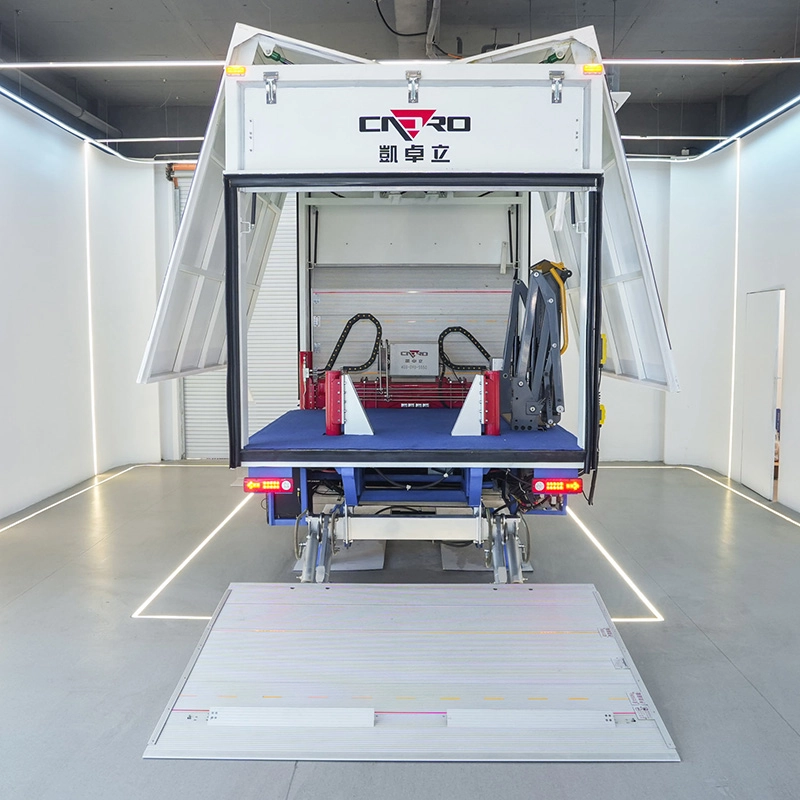

Fixed tail lifts, commonly called cantilever tail lifts, have a platform that folds vertically and is hydraulically tilted to the ground for loading and unloading. The platform often doubles as the vehicle's rear door, folding up when not in use.
- Quick Deployment: Only two actions are required—folding open the platform and lowering it to the ground—making it faster to operate than folding tail lifts.
- No Manual Handling: The hydraulic system handles the platform, reducing physical strain on the operator.
- Higher Load Capacity: Fixed tail lifts can support heavier loads, sometimes up to 10 tonnes, making them suitable for heavy-duty applications.
- Better Ground Clearance: When folded, the tail lift sits higher, reducing the risk of damage when navigating steep driveways or uneven terrain.
- Effective as a Bridge Plate: They provide a stable bridge between the vehicle and loading docks, supporting heavier forklift traffic.
- Dock Loading Limitations: When backing up to refrigerated or sealed docks, the tail lift must remain retracted, preventing a tight seal between the vehicle and dock.
- Less Flexibility for Forklift Loading: Heavy forklifts may exceed the platform's rated capacity, limiting direct loading.
- Bulkier Design: The fixed platform can reduce rear visibility and may add weight to the vehicle, impacting fuel efficiency.
Folding tail lifts are designed to fold compactly under the rear of the vehicle when not in use. The two main types are:
- Slider (Retractable): The platform slides out horizontally before unfolding and lowering.
- Tuck-Under (Tuck-Away): The platform folds and tucks underneath the vehicle.
Both require some manual handling by the driver to unfold and deploy the platform.
- Ideal for Dock Loading: Since the tail lift folds away under the vehicle, drivers can reverse up to the dock and open the doors without the lift obstructing access, which is especially beneficial for refrigerated dock environments.
- Lighter Weight: Folding tail lifts tend to be lighter than fixed lifts, allowing for slightly more cargo capacity and better fuel economy.
- Compact Storage: The foldable design maximizes cargo space when the lift is stowed.
- Versatility: Suitable for vehicles with limited rear space or those frequently loading at docks.
- Slower Deployment: The manual unfolding process makes it slower to operate compared to fixed lifts.
- Manual Handling Required: Drivers must physically unfold the platform, which can pose injury risks if not done correctly.
- Lower Load Capacity: Typically supports less weight than fixed lifts, with capacities usually up to 3000 kg.
- Limited Use as Bridge Plate: Without special forklift locks, folding lifts cannot safely serve as a bridge between dock and vehicle.
- Ground Clearance Issues: Because the folded platform sits underneath the vehicle, it may scrape or drag on steep driveways or uneven surfaces.
- Safety Concerns: The need to open rear doors and walk into traffic lanes to deploy the lift increases risk exposure.
| Feature | Fixed (Cantilever) Tail Lift | Folding Tail Lift |
|---|---|---|
| Deployment Speed | Faster (2-step operation) | Slower (manual unfolding required) |
| Load Capacity | Higher (up to ~10 tonnes) | Lower (up to ~3 tonnes) |
| Manual Handling | No | Yes (manual unfolding) |
| Dock Loading Suitability | Less ideal (blocks tight dock seal) | Better (lift folds away, allows dock access) |
| Ground Clearance | Higher, less risk of scraping | Lower, risk of scraping on slopes |
| Weight Impact on Vehicle | Heavier, may reduce fuel efficiency | Lighter, better fuel economy |
| Use as Bridge Plate | Effective for forklift traffic | Limited without additional equipment |
| Safety Considerations | Safer (no manual handling, no door opening) | More risk (manual handling, walking into traffic) |
Fixed tail lifts are best suited for:
- Heavy-duty vehicles requiring high load capacity.
- Operations where quick deployment is essential.
- Situations where the tail lift doubles as a rear door.
- Environments with uneven terrain or steep driveways.
- Cargo types that demand a stable bridge plate for forklift use.
Folding tail lifts are ideal for:
- Vehicles frequently loading at docks, especially refrigerated docks.
- Situations where maximizing cargo space is important.
- Operators prioritizing lighter equipment and better fuel economy.
- Vehicles with limited rear space or those needing compact tail lift storage.
- Applications where the tail lift must not obstruct door opening or dock access.
Regardless of the tail lift type, proper training is essential to prevent injuries such as crush injuries, falls, and strains. Folding tail lifts, due to their manual handling, carry a higher risk of injury if not operated correctly. Employers should ensure that drivers receive comprehensive training on tail lift operation and safety protocols.
- Fixed Tail Lifts: Generally more robust due to simpler mechanisms but require regular hydraulic system maintenance.
- Folding Tail Lifts: More complex folding mechanisms may require additional upkeep and inspections to ensure smooth operation and avoid mechanical failures.
Choosing between a folding tail lift and a fixed tail lift depends on your vehicle type, cargo handling needs, and operational environment. Fixed tail lifts offer speed, strength, and durability for heavy loads and rough terrain, while folding tail lifts provide flexibility, dock compatibility, and space efficiency. Evaluate your priorities carefully—load capacity, deployment speed, safety, and dock compatibility—to select the tail lift that best fits your vehicle and business requirements.
1. Can folding tail lifts support heavy loads like fixed tail lifts?
No, folding tail lifts generally have lower load capacities, typically up to around 3000 kg, whereas fixed tail lifts can handle loads up to 10 tonnes.
2. Are folding tail lifts safer than fixed tail lifts?
Fixed tail lifts are generally safer due to hydraulic operation without manual handling. Folding tail lifts require manual unfolding, increasing injury risk if not used properly.
3. Which tail lift is better for refrigerated dock loading?
Folding tail lifts are better because they fold away, allowing the vehicle to seal tightly against the dock without obstruction.
4. Do folding tail lifts affect vehicle fuel efficiency?
Folding tail lifts are lighter, which can slightly improve fuel economy compared to heavier fixed tail lifts.
5. Is special training required to operate tail lifts?
Yes, all tail lift operators should receive proper training to ensure safe and efficient use, minimizing risks of injury and equipment damage.
