In the fast-paced world of logistics and warehousing, efficient loading and unloading operations are critical to maintaining smooth supply chain flows. One of the key pieces of equipment that facilitate this is the dock leveler, a device designed to bridge the gap between a warehouse dock and the transport vehicle. Among the various types of dock levelers, two popular options are the Dock Leveler (often referring to surface-mounted or hydraulic dock levelers) and the Recessed Dock Leveler (also known as pit-style dock levelers). Choosing the right dock leveler is essential for operational efficiency, safety, and cost-effectiveness. This article will explore the differences, advantages, and considerations for each type to help warehouse operators make an informed decision.
A dock leveler is a platform that compensates for height differences between a warehouse loading dock and transport vehicles such as trucks or trailers. It ensures a smooth transition for forklifts, pallet jacks, and other material handling equipment, minimizing the risk of damage to goods or equipment during loading and unloading.
Dock levelers can be broadly categorized based on their installation and operation mechanisms:
- Surface-mounted dock levelers: Installed on the dock surface, often hydraulic or mechanical.
- Recessed (pit-style) dock levelers: Installed in a pit below the dock surface, providing a flush dock face when not in use.
Recessed dock levelers are installed in a concrete pit formed in the dock area. When not in use, the leveler sits flush with the dock floor, creating a clean and unobstructed surface. When activated, the platform raises and extends to bridge the gap between the dock and the vehicle bed.
- Wide operating range: Typically can accommodate height differences of up to 12 inches above and below dock height, with some custom configurations extending this range even further.
- Load capacity: Designed to handle heavy loads, often exceeding 10 tons, making them suitable for high-volume and heavy-duty applications.
- Activation types: Available in mechanical spring-loaded models or powered hydraulic/air systems. Powered models offer easier operation and potentially lower long-term costs despite higher initial investment.
- Durability and lifespan: Pit installation protects the leveler from external damage and weather, often resulting in longer service life.
- Safety features: Equipped with safety locks, emergency stop buttons, and anti-slip surfaces to protect operators and equipment.
- Space-saving and clean dock area: The recessed installation allows the dock surface to remain flat and unobstructed when the leveler is not in use, which is ideal for busy docks.
- Environmental control: Because the dock face remains clear, dock doors can close tightly, improving climate control and security.
- Versatility: Can accommodate a wide range of trailer heights and load types.
- Reduced maintenance: Protected from debris and damage due to pit installation.

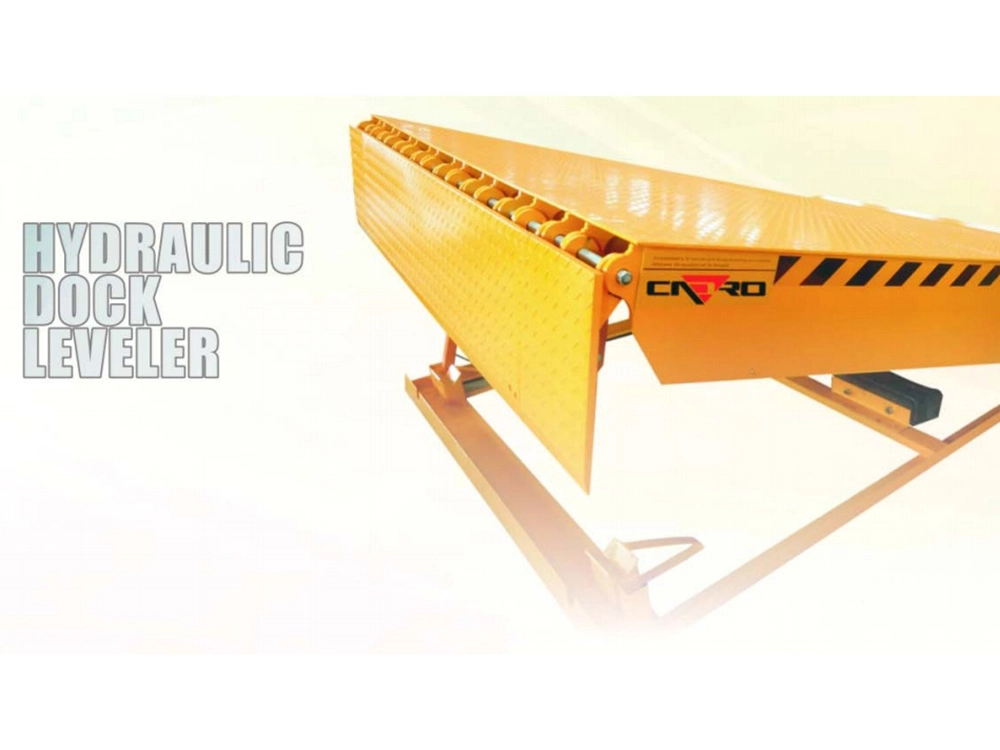

Surface-mounted dock levelers, often simply called dock levelers, are installed directly on the dock surface without requiring a pit. These are commonly hydraulic or mechanical platforms that raise and lower to bridge the dock and trailer.
- Installation flexibility: Can be installed on existing docks without the need for major structural modifications.
- Hydraulic operation: Most modern surface-mounted dock levelers use hydraulic systems for smooth and precise height adjustments.
- Load capacity: Typically designed for medium to heavy loads, with capacities varying widely depending on the model.
- Cost-effectiveness: Generally lower initial installation cost compared to recessed dock levelers, especially when retrofitting existing docks.
- Maintenance: Easier to access for repairs and maintenance since they are above ground.
- Ease of installation: No need for concrete pit construction, reducing downtime and cost.
- Adaptability: Suitable for docks where pit installation is not feasible or cost-prohibitive.
- High load capacity: Hydraulic models can handle heavy loads and frequent use.
- Safety and control: Equipped with advanced safety features such as automatic lip extension, safety legs, and control panels.
| Feature | Dock Leveler (Surface-Mounted) | Recessed Dock Leveler (Pit-Style) |
|---|---|---|
| Installation | Mounted on dock surface; no pit required | Installed in concrete pit below dock surface |
| Initial Cost | Generally lower, especially for retrofit projects | Higher due to pit construction and installation |
| Operating Range | Typically less than recessed; depends on model | Standard ±12 inches above/below dock height; customizable |
| Load Capacity | Medium to heavy loads, depending on design | Heavy-duty loads, often higher capacity options |
| Maintenance | Easier to access and maintain | Protected but access may require pit entry |
| Dock Surface | Platform protrudes when stored; may obstruct dock area | Flush with dock floor when stored; clean and unobstructed |
| Environmental Control | Less effective; dock doors close over leveler | Better climate control; dock doors close to concrete |
| Safety Features | Advanced safety mechanisms available | Safety locks, emergency stops, and anti-slip surfaces |
| Suitability | Ideal for docks without pit or where retrofit is needed | Best for new docks or where pit installation is possible |
| Energy Efficiency | Hydraulic models may consume more energy | Powered models can be more energy-efficient long-term |
If your warehouse dock already has a pit or you are planning new construction, recessed dock levelers are a natural choice. For existing docks without pits, surface-mounted dock levelers offer a practical retrofit solution without major structural changes.
Heavy-duty operations with frequent loading and unloading benefit from the durability and wide operating range of recessed dock levelers. For medium loads or less frequent operations, surface-mounted dock levelers can provide sufficient performance.
Powered dock levelers, whether recessed or surface-mounted, improve efficiency with push-button operation and reduce operator fatigue. Safety features such as emergency stops, safety legs, and anti-slip surfaces are vital regardless of type.
Facilities requiring strict climate control, such as cold storage warehouses, benefit from recessed dock levelers that allow dock doors to close tightly against the concrete, maintaining temperature and preventing pest entry.
While recessed dock levelers have higher upfront costs, they often require less maintenance and have longer lifespans. Surface-mounted dock levelers have lower initial costs but may incur more frequent maintenance.
Beyond the basic types, there are specialized dock levelers designed for specific warehouse needs:
- Vertical Storing Dock Levelers: Store upright inside the dock, ideal for temperature-sensitive environments requiring a tight seal and enhanced cleanliness.
- Edge-of-Dock Levelers: Mounted on the dock face, suitable for light loads and docks with minimal height variation.
- Rail Dock Levelers: Designed specifically for rail car loading, sliding horizontally to align with rail cars.
- Regular inspections: Check hydraulic systems, mechanical parts, and safety devices frequently.
- Keep dock area clean: Remove debris to prevent damage and ensure smooth operation.
- Train operators: Proper training reduces accidents and equipment misuse.
- Use safety features: Ensure emergency stops and locking mechanisms are functional.
- Scheduled servicing: Follow manufacturer recommendations for preventive maintenance.
Choosing between a Dock Leveler and a Recessed Dock Leveler depends on your warehouse's specific requirements, including dock construction, load capacity, operational frequency, environmental control needs, and budget constraints. Recessed dock levelers offer superior durability, environmental control, and a clean dock surface but come with higher installation costs. Surface-mounted dock levelers are more flexible and cost-effective for existing docks but may be less ideal for heavy-duty or climate-sensitive applications.
By carefully assessing your operational needs and consulting with dock leveler manufacturers or experts, you can select the right dock leveler to optimize your warehouse's loading dock efficiency, safety, and longevity.
1. What is the main difference between dock levelers and recessed dock levelers?
Dock levelers are surface-mounted platforms, while recessed dock levelers are installed in a pit below the dock surface, allowing them to sit flush when not in use.
2. Which dock leveler type is better for cold storage warehouses?
Recessed dock levelers are preferred because they allow dock doors to close tightly, improving climate control and reducing energy loss.
3. Can dock levelers handle different trailer heights?
Yes, both types are designed to accommodate a range of trailer heights, with recessed dock levelers typically offering a wider operating range.
4. Are hydraulic dock levelers more efficient than mechanical ones?
Hydraulic dock levelers provide smoother operation and easier control, especially for heavy loads, though they may have higher initial costs.
5. How often should dock levelers be maintained?
Regular inspections should be conducted monthly, with comprehensive servicing annually or as recommended by the manufacturer.
